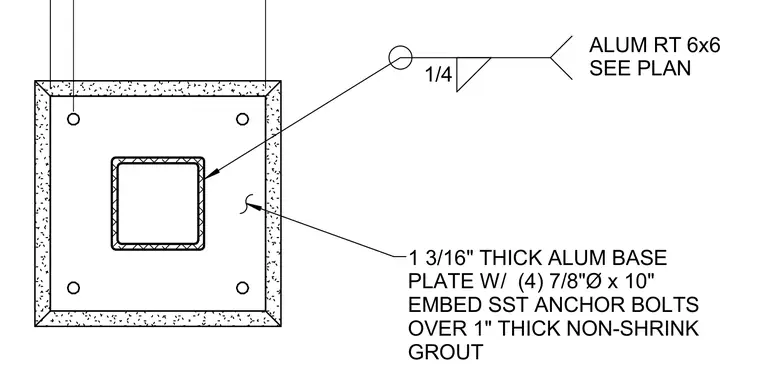

An aluminum rectangular tube column is welded to a 1 3/16-inch thick aluminum base plate using a 1/4-inch fillet weld, sized per plan. The base plate is secured with four 7/8-inch diameter by 10-inch embedded stainless steel anchor bolts. The entire assembly bears over a 1-inch thick layer of non-shrink grout.
1 3/16" THICK ALUM BASE PLATE W/ (4) 7/8"Ø x 10" EMBED SST ANCHOR BOLTS OVER 1" THICK NON-SHRINK GROUT 1/4 ALUM RT 6x6 SEE PLAN
