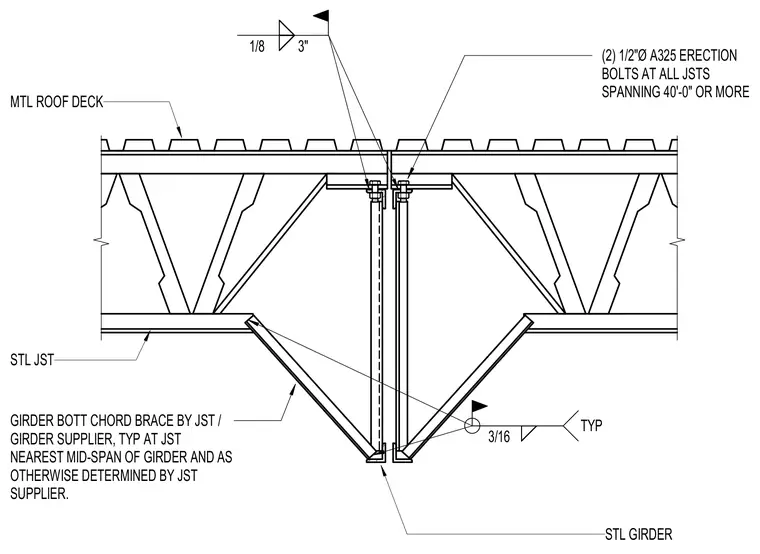

Steel roof joists bear on a steel girder beneath a metal roof deck, featuring bottom chord braces located at the joist nearest mid-span and as determined by the joist supplier. Two 1/2-inch diameter ASTM A325 erection bolts are required at all joists spanning 40 feet or more. Welds connecting the bracing components are specified with typical 3/16-inch fillet welds.
GIRDER BOTT CHORD BRACE BY JST / GIRDER SUPPLIER, TYP AT JST NEAREST MID-SPAN OF GIRDER AND AS OTHERWISE DETERMINED BY JST SUPPLIER. STL GIRDER MTL ROOF DECK STL JST (2) 1/2"Ø A325 ERECTION BOLTS AT ALL JSTS SPANNING 40'-0" OR MORE 3/16 TYP 1/8 3"
