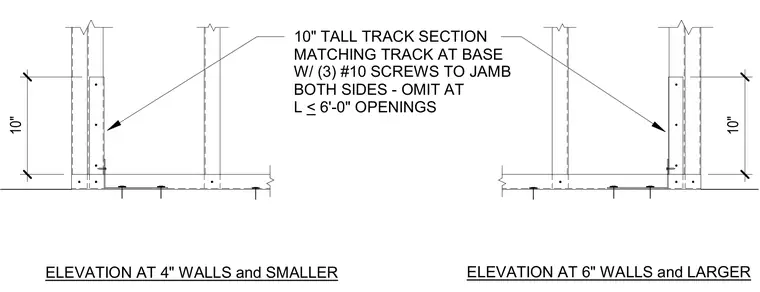

A ten-inch tall track section matching the base track connects to the jamb on both sides using three number ten screws. This framing detail is omitted at openings where the span is less than six feet. The connection is detailed for both four-inch walls and smaller, as well as six-inch walls and larger.
10" 10" 10" TALL TRACK SECTION MATCHING TRACK AT BASE W/ (3) #10 SCREWS TO JAMB BOTH SIDES - OMIT AT L < 6'-0" OPENINGS ELEVATION AT 4" WALLS and SMALLER ELEVATION AT 6" WALLS and LARGER
