Structural · S-M4MST

Stair Stringer Top Connection at Steel Beam

Materials

Elements

Stairs Decks Arches Entrances Connections / Plates

About this detail

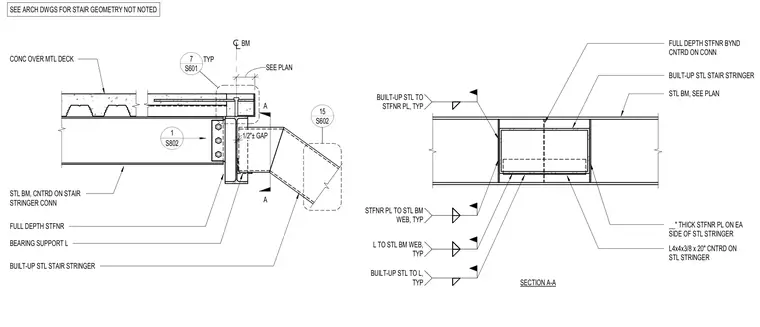

A built-up steel stair stringer frames into a supporting steel beam with a one-half-inch plus or minus gap at the top landing. The assembly utilizes full-depth stiffener plates welded to the stair stringer and to the steel beam web, supplemented by a structural steel angle bearing support centered on the stringer. A concrete over metal deck slab bears on the structural framing above. Stair geometry is coordinated per architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
