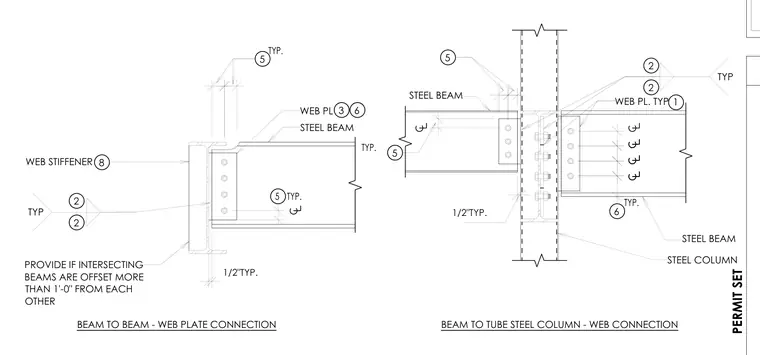

Steel floor beams connect to a supporting steel beam or hollow structural section column using bolted web plates and welded web stiffeners. The intersecting steel beams feature typical web plates bolted to the beam webs, with web stiffeners provided when intersecting beams are offset more than one foot from each other. Bolts secure the web connection plates while welds attach the stiffeners to the supporting members per typical construction practices.
BEAM TO BEAM - WEB PLATE CONNECTION 1/2"TYP. 5 TYP. WEB STIFFENER 8 5 TYP. WEB PL 3 6 STEEL BEAM 5 STEEL BEAM 2 2 1/2"TYP. STEEL COLUMN STEEL BEAM 6 TYP. WEB PL. TYP 1 5 TYP. BEAM TO TUBE STEEL COLUMN - WEB CONNECTION PROVIDE IF INTERSECTING BEAMS ARE OFFSET MORE THAN 1'-0" FROM EACH OTHER TYP 2 2 TYP PERMIT SET
