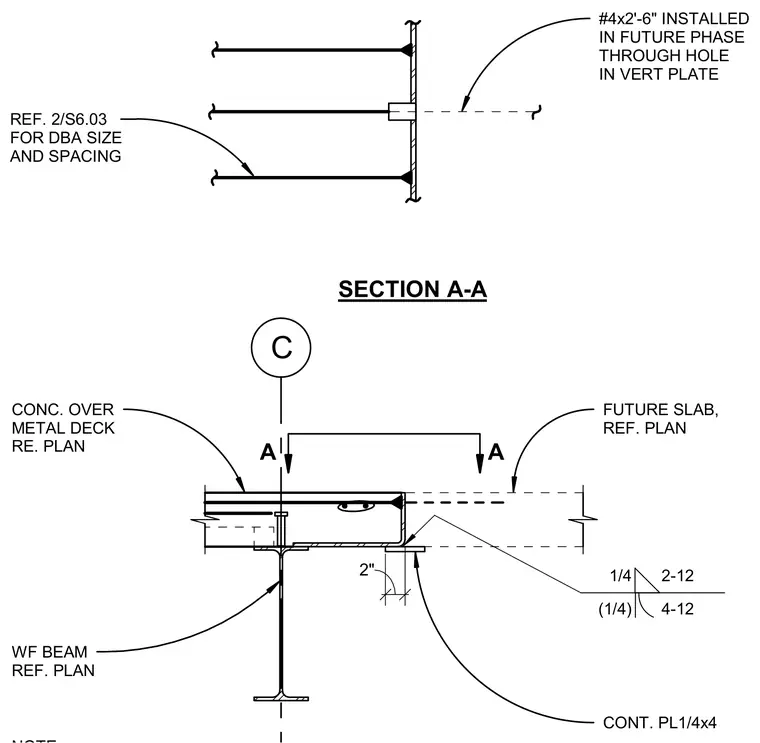

This structural section detail shows the connection of a concrete slab over metal deck to a wide flange beam at a future slab transition. A continuous plate sized 1/4 inch by 4 inches is welded to the beam and slab edge to receive the future pour. Number 4 reinforcing bars measuring 2 feet 6 inches in length are installed through holes in the vertical plate during a future construction phase. Deformed bar anchor size and spacing are referenced from sheet S6.03.
2" C A A SECTION A-A #4x2'-6" INSTALLED IN FUTURE PHASE THROUGH HOLE IN VERT PLATE REF. 2/S6.03 FOR DBA SIZE AND SPACING FUTURE SLAB, REF. PLAN CONT. PL1/4x4 WF BEAM REF. PLAN CONC. OVER METAL DECK RE. PLAN (1/4) 4-12 1/4 2-12
