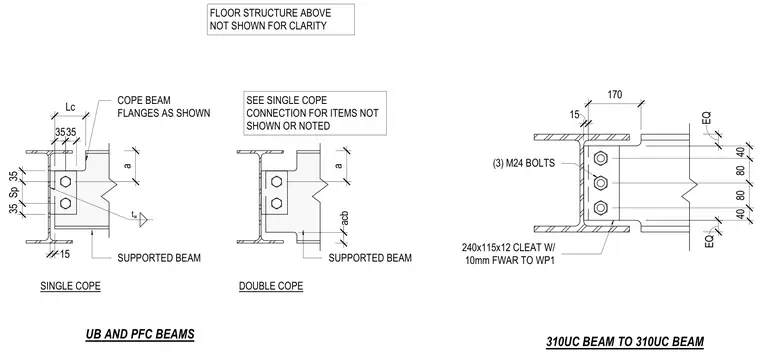

A supported steel beam with coped flanges connects to a supporting beam using a cleat and bolts. The assembly features single and double cope configurations with coped beam flanges as shown. A 240x115x12 cleat plate with a 10mm fillet weld attaches to the supporting member web. Three M24 bolts secure the supported beam web to the cleat connection.
Lc 35 Sp 35 a 15 3535 SUPPORTED BEAM COPE BEAM FLANGES AS SHOWN a SUPPORTED BEAM acb SEE SINGLE COPE CONNECTION FOR ITEMS NOT SHOWN OR NOTED SINGLE COPE DOUBLE COPE t w FLOOR STRUCTURE ABOVE NOT SHOWN FOR CLARITY 170 15 40 80 80 40 EQ EQ 240x115x12 CLEAT W/ 10mm FWAR TO WP1 (3) M24 BOLTS 310UC BEAM TO 310UC BEAM UB AND PFC BEAMS
