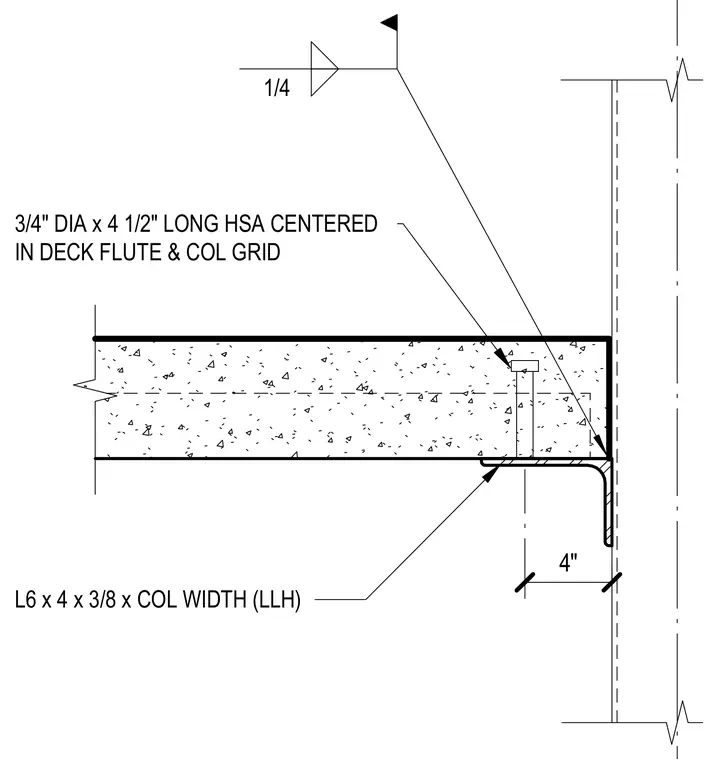

A structural angle measuring L6x4x3/8 spanning the column width supports the edge of a concrete slab. The angle is anchored to the concrete using a three-quarter-inch diameter by four-and-a-half-inch long heavy-duty stud anchor centered in the deck flute and column grid. A quarter-inch fillet weld secures the angle assembly to the structural support.
L6 x 4 x 3/8 x COL WIDTH (LLH) 4" 3/4" DIA x 4 1/2" LONG HSA CENTERED IN DECK FLUTE & COL GRID 1/4
