A concrete footing rests directly on a prepared bed of compacted structural fill. The footing width extends past the supported structure on each side by a dimension equal to half the minimum thickness. The compacted structural fill zone extends to a minimum thickness defined as t, with grading requirements specified in the general structural notes.

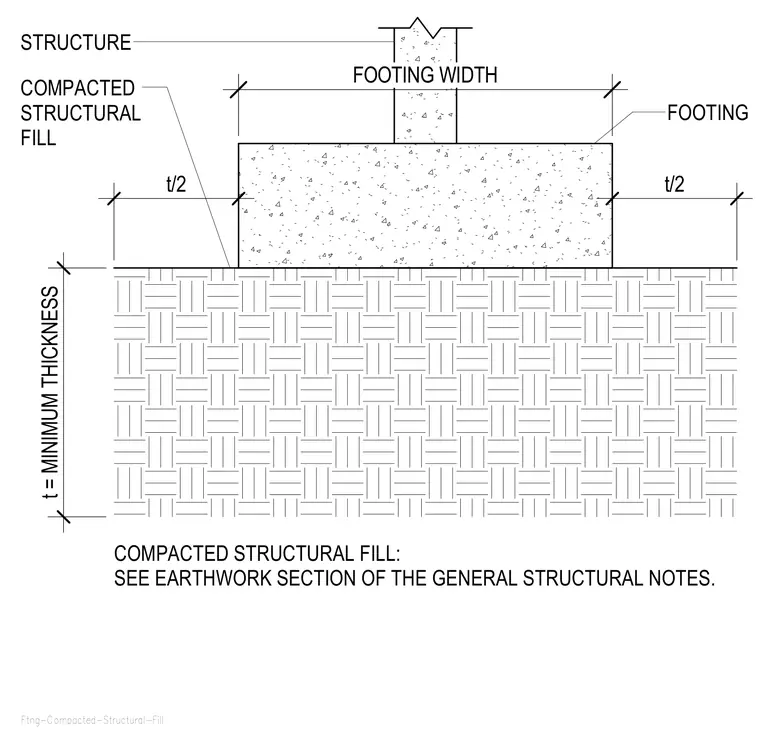

STRUCTURE COMPACTED STRUCTURAL FILL FOOTING COMPACTED STRUCTURAL FILL: SEE EARTHWORK SECTION OF THE GENERAL STRUCTURAL NOTES. Ftng-Compacted-Structural-Fill FOOTING WIDTH t = MINIMUM THICKNESS t/2 t/2
