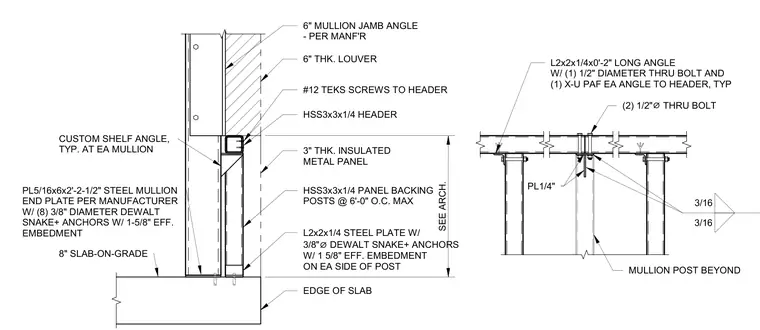

An 8-inch slab-on-grade supports hollow structural section HSS 3x3x1/4 panel backing posts spaced at six feet on center maximum with L 2x2x1/4 steel plates secured by 3/8-inch diameter DeWalt Snake+ anchors with 1-5/8-inch effective embedment on each side of the post. An HSS 3x3x1/4 header ties into the backing posts utilizing #12 Teks screws and connecting steel mullion end plates measuring 5/16-inch by 6 inches by 2 feet 2-1/2 inches with eight 3/8-inch diameter DeWalt Snake+ anchors. A custom 6-inch louver shelf angle is positioned at each mullion alongside a 6-inch mullion jamb angle per manufacturer specifications. A 3-inch thick insulated metal panel finishes the exterior face, while an L 2x2x1/4 by 2-inch long angle connects to the header using one 1/2-inch diameter through-bolt and one X-U powder-actuated fastener per angle.
3" THK. INSULATED METAL PANEL 6" MULLION JAMB ANGLE - PER MANF'R 6" THK. LOUVER CUSTOM SHELF ANGLE, TYP. AT EA MULLION EDGE OF SLAB L2x2x1/4 STEEL PLATE W/ 3/8" ⌀ DEWALT SNAKE+ ANCHORS W/ 1 5/8" EFF. EMBEDMENT ON EA SIDE OF POST HSS3x3x1/4 PANEL BACKING POSTS @ 6'-0" O.C. MAX SEE ARCH. HSS3x3x1/4 HEADER #12 TEKS SCREWS TO HEADER PL5/16x6x2'-2-1/2" STEEL MULLION END PLATE PER MANUFACTURER W/ (8) 3/8" DIAMETER DEWALT SNAKE+ ANCHORS W/ 1-5/8" EFF. EMBEDMENT 8" SLAB-ON-GRADE L2x2x1/4x0'-2" LONG ANGLE W/ (1) 1/2" DIAMETER THRU BOLT AND (1) X-U PAF EA ANGLE TO HEADER, TYP (2) 1/2" ⌀ THRU BOLT PL1/4" 3/16 3/16 MULLION POST BEYOND
