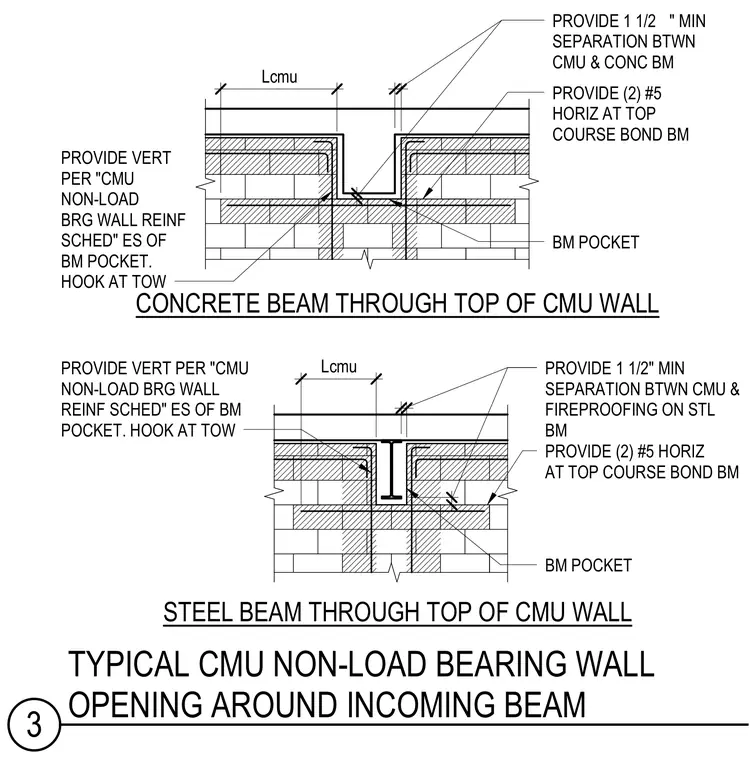

Beam penetrations pass through the top of a non-load-bearing concrete masonry unit wall for both concrete beam and steel beam conditions. A beam pocket is framed into the top of the masonry wall with vertical reinforcing bars placed on each side according to the CMU non-load bearing wall reinforcing schedule, complete with hooks at the top of wall. Two number five horizontal reinforcing bars are provided at the top course bond beam. A one-and-one-half-inch minimum separation is maintained between the masonry wall and the concrete beam, or the fireproofing on the steel beam.
CONCRETE BEAM THROUGH TOP OF CMU WALL STEEL BEAM THROUGH TOP OF CMU WALL Lcmu BM POCKET PROVIDE VERT PER "CMU NON-LOAD BRG WALL REINF SCHED" ES OF BM POCKET. HOOK AT TOW PROVIDE 1 1/2 " MIN SEPARATION BTWN CMU & CONC BM PROVIDE VERT PER "CMU NON-LOAD BRG WALL REINF SCHED" ES OF BM POCKET. HOOK AT TOW PROVIDE 1 1/2" MIN SEPARATION BTWN CMU & FIREPROOFING ON STL BM PROVIDE (2) #5 HORIZ AT TOP COURSE BOND BM PROVIDE (2) #5 HORIZ AT TOP COURSE BOND BM 1 3/4" 2 1/4" 1 3/4" 36 1/8" 2" BM POCKET 23 3/8" Lcmu 3 TYPICAL CMU NON-LOAD BEARING WALL OPENING AROUND INCOMING BEAM
