Structural · S-M3CBJ

Door At Screen Wall

Materials

Concrete Steel Metal (misc.)

Elements

Beams Walls Doors Roofs Floors / Slabs Decks

Connections

Bolted Connection

About this detail

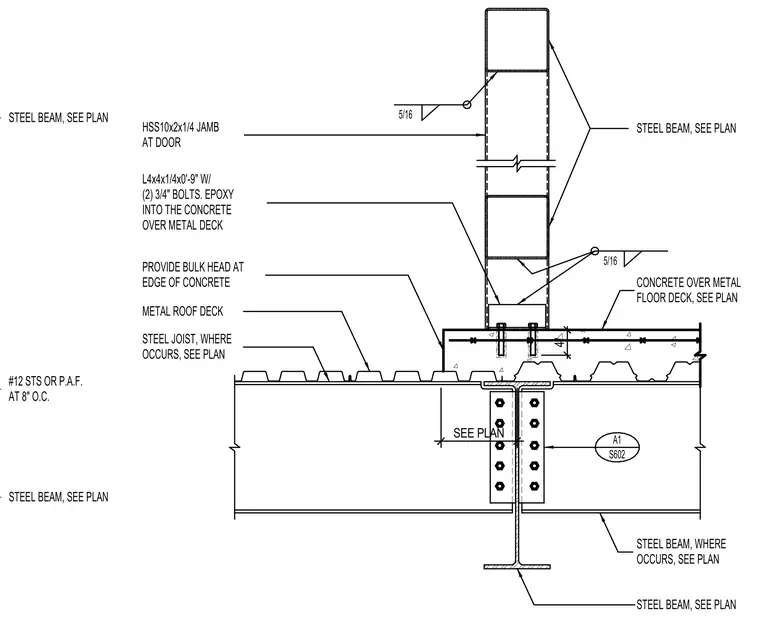

A hollow structural section door jamb constructed from an HSS 10x2x1/4 member is secured to a concrete topping over a metal floor deck using an L4x4x1/4 angle measuring zero feet nine inches long with two three-quarter-inch diameter epoxy-set bolts. The metal deck assembly incorporates a steel joist where required and a metal roof deck fastened with number twelve self-tapping screws or powder-actuated fasteners at eight inches on center. A bulkhead is provided at the edge of the concrete topping. The entire assembly bears on a structural steel beam connected with framing angles sized per plan, with five-sixteenth-inch fillet welds joining the structural components.
