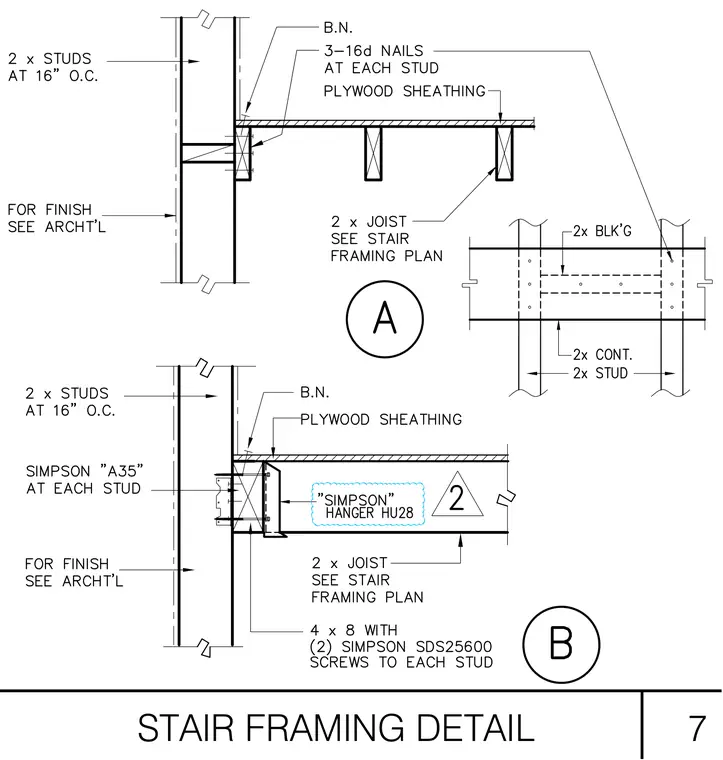

Wood floor and stair framing connects to a stud wall framed with 2x studs at 16 inches on center. Joists bearing on the ledger or connected via Simpson hangers tie into the wall assembly with plywood sheathing above. Blocking and continuous members are fastened with 16d nails or structural screws per the framing plan. Finishes are coordinated with the architectural drawings.
