Structural · S-M2XFF

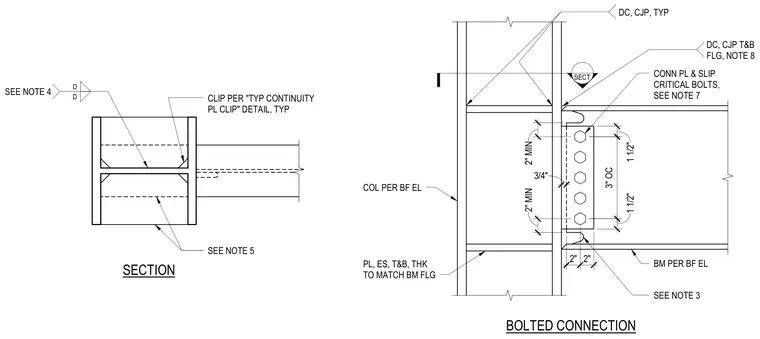

Bolted Beam to Column Connection with Continuity Plates

Elements

Connections

About this detail

A wide-flange steel beam connects to a wide-flange steel column using a bolted connection plate fastened with slip-critical bolts spaced at three inches on center. The top and bottom beam flanges attach to the column with complete joint penetration welds. Horizontal continuity plates match the beam flange thickness and align with the column web stiffeners. Specific clip details and weld configurations are applied according to the project structural notes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
