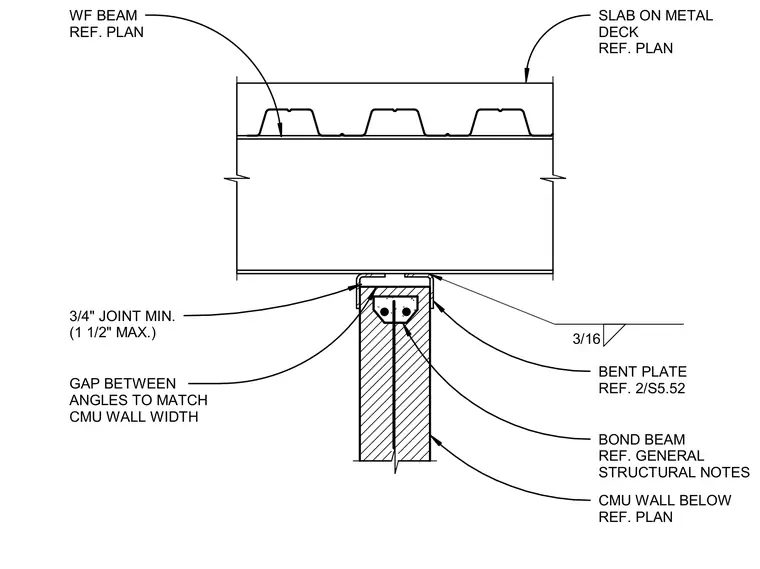

A wide flange steel beam supports a concrete slab on metal deck above a concrete masonry unit wall below. A bent plate is welded to the underside of the wide flange beam with a three-sixteenths inch fillet weld. The masonry wall features a bond beam with reinforcing bars and maintains a joint gap between three-quarters of an inch minimum and one and a half inches maximum. The gap between angles is configured to match the concrete masonry unit wall width.
SLAB ON METAL DECK REF. PLAN WF BEAM REF. PLAN GAP BETWEEN ANGLES TO MATCH CMU WALL WIDTH BENT PLATE REF. 2/S5.52 BOND BEAM REF. GENERAL STRUCTURAL NOTES CMU WALL BELOW REF. PLAN 3/16 3/4" JOINT MIN. (1 1/2" MAX.)
