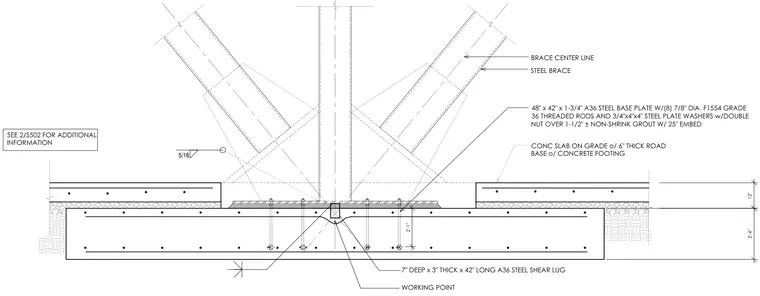

A structural steel brace frame connection is anchored to a concrete footing and slab on grade assembly. The steel brace connects to a forty-eight-inch by forty-two-inch by one-and-three-quarter-inch A36 steel base plate secured by eight seven-eighth-inch diameter ASTM F1554 Grade 36 threaded rods with three-quarter-inch by four-inch by four-inch steel plate washers and double nuts. The base plate bears over a one-and-a-half-inch non-shrink grout layer with twenty-five-inch embedment into the concrete. A seven-inch deep by three-inch thick by forty-two-inch long A36 steel shear lug is welded to the assembly with a five-sixteenth-inch fillet weld to transfer lateral loads into the concrete footing. The concrete footing supports a twenty-six-inch concrete slab on grade over a six-inch thick road base layer.
48" x 42" x 1-3/4" A36 STEEL BASE PLATE W/(8) 7/8" DIA. F1554 GRADE 36 THREADED RODS AND 3/4"x4"x4" STEEL PLATE WASHERS w/DOUBLE 18729(51216+5,1.*5287:(0%(' BRACE CENTER LINE STEEL BRACE WORKING POINT 12" 2'-1" 7" DEEP x 3" THICK x 42" LONG A36 STEEL SHEAR LUG SEE 2/S502 FOR ADDITIONAL INFORMATION 2'-6" CONC SLAB ON GRADE o/ 6" THICK ROAD BASE o/ CONCRETE FOOTING
