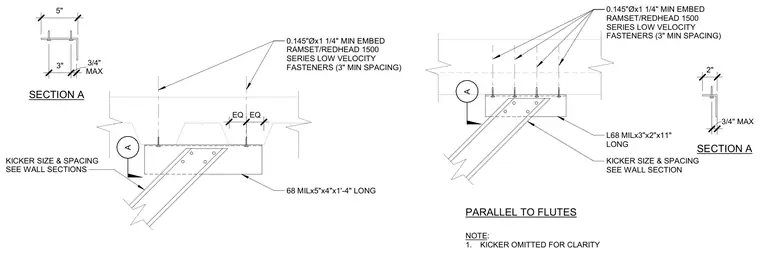

A cold-formed steel angle kicker connects to the overhead metal deck using 0.145-inch diameter by 1-1/4 inch minimum embedment Ramset/Redhead 1500 series low velocity fasteners spaced at 3 inches minimum. The connection utilizes a 68 mil angle secured with the specified low velocity fasteners. Section views detail the fastener placement and edge distances relative to the deck flutes both parallel and perpendicular orientations. Kicker size and spacing are determined per structural wall sections.
A A 3/4" MAX 2" 0.145"Øx1 1/4" MIN EMBED RAMSET/REDHEAD 1500 SERIES LOW VELOCITY FASTENERS (3" MIN SPACING) L68 MILx3"x2"x11" LONG KICKER SIZE & SPACING SEE WALL SECTION EQ EQ 0.145"Øx1 1/4" MIN EMBED RAMSET/REDHEAD 1500 SERIES LOW VELOCITY FASTENERS (3" MIN SPACING) 68 MILx5"x4"x1'-4" LONG KICKER SIZE & SPACING SEE WALL SECTIONS 5" 3" MAX 3/4" PARALLEL TO FLUTES NOTE: 1. KICKER OMITTED FOR CLARITY SECTION A SECTION A
