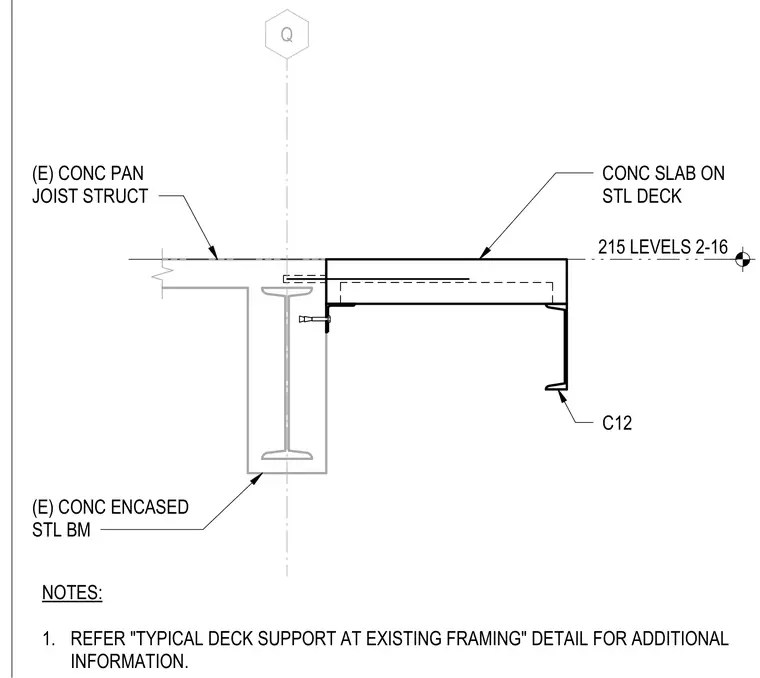

A concrete slab on steel deck bears adjacent to an existing concrete pan joist structure and a concrete-encased steel beam at grid line Q for levels 2 through 16. A C12 channel supports the edge of the steel deck and connects to the concrete-encased steel beam. Additional deck support at existing framing is referenced for further installation requirements.
Q 215 LEVELS 2-16 C12 CONC SLAB ON STL DECK (E) CONC PAN JOIST STRUCT (E) CONC ENCASED STL BM NOTES: 1. REFER "TYPICAL DECK SUPPORT AT EXISTING FRAMING" DETAIL FOR ADDITIONAL INFORMATION.
