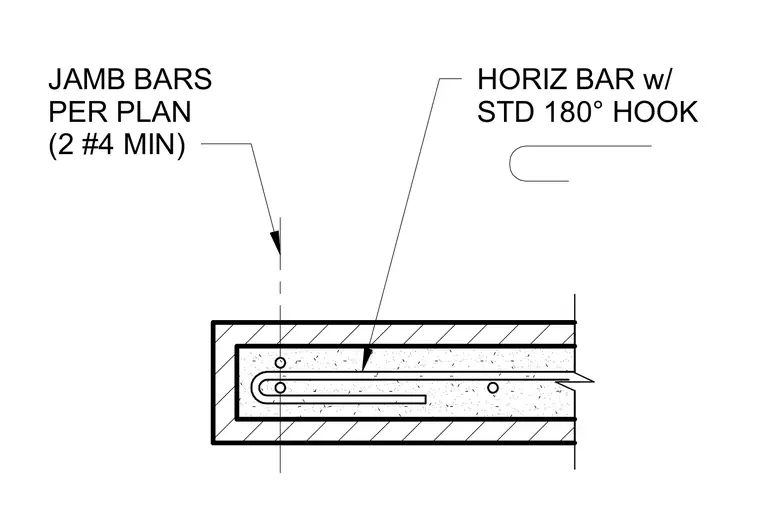

The concrete wall assembly includes vertical jamb bars sized per plan with a minimum of two number four bars. A horizontal reinforcing bar terminates with a standard 180 degree hook wrapping around the vertical jamb reinforcement.
