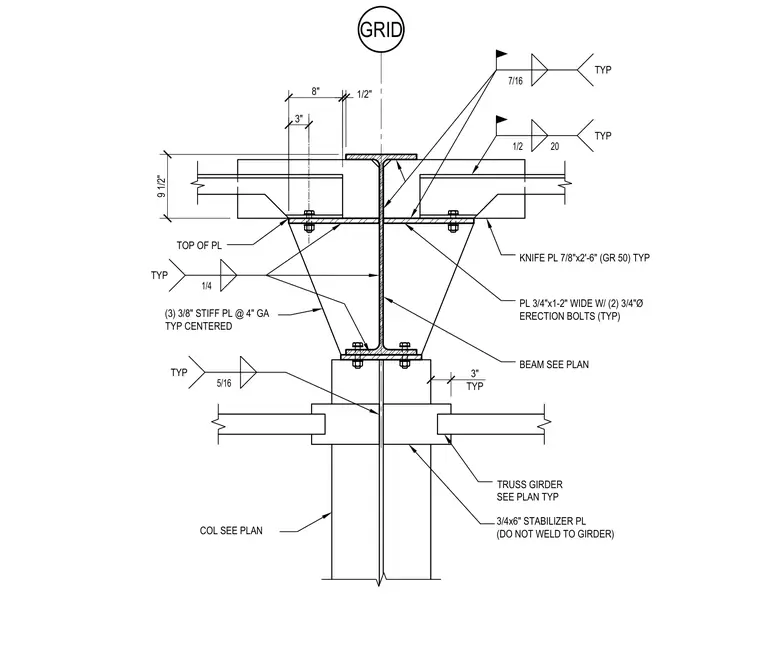

A structural steel connection frames a beam and truss girder into a column centered on a grid line. A 7/8-inch by 2-foot-6-inch Grade 50 knife plate connects the framing, secured with three 3/8-inch stiffener plates at 4-inch gauge centered typical, and a 3/4-inch by 1-foot-2-inch wide plate with two 3/4-inch diameter erection bolts typical. Fillet welds of 1/4-inch, 7/16-inch, 1/2-inch with field weld symbols, and 5/16-inch sizes join the steel plates. A 3/4-inch by 6-inch stabilizer plate is left unwelded to the girder.
9 1/2" 3" COL SEE PLAN TRUSS GIRDER SEE PLAN TYP BEAM SEE PLAN (3) 3/8" STIFF PL @ 4" GA TYP CENTERED 7/16 TYP GRID 1/2 20 TYP KNIFE PL 7/8"x2'-6" (GR 50) TYP 1/4 TYP 5/16 TYP 8" 1/2" PL 3/4"x1-2" WIDE W/ (2) 3/4"Ø ERECTION BOLTS (TYP) 3/4x6" STABILIZER PL (DO NOT WELD TO GIRDER) TOP OF PL 3" TYP
