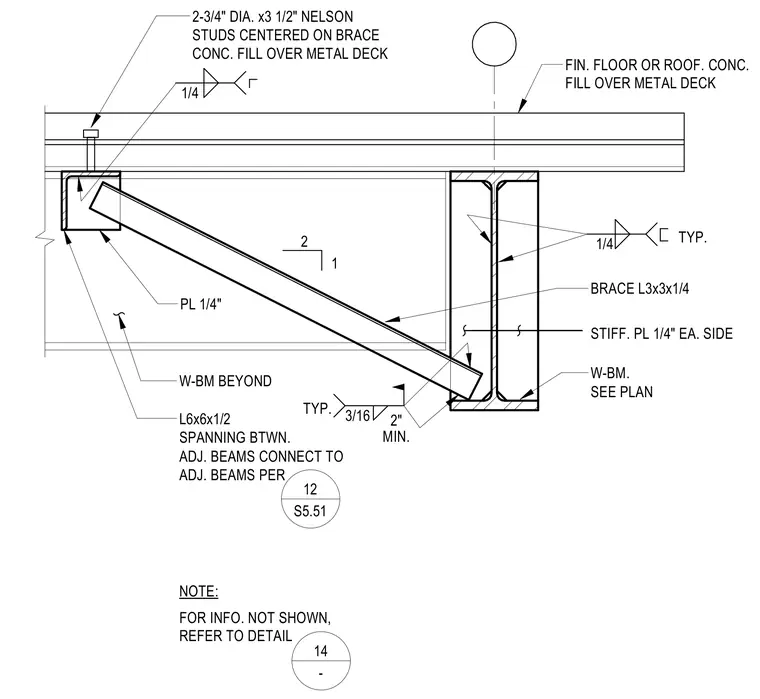

A bracing connection at a wide-flange beam supporting a concrete fill over a metal deck features two 3/4-inch diameter by 3 1/2-inch long Nelson studs centered on a brace plate with a 1/4-inch weld. A brace angle measuring L3x3x1/4 connects back to a wide flange beam with 1/4-inch typical welds and 1/4-inch stiffener plates on each side. An L6x6x1/2 angle spans between adjacent beams and connects per plan. A minimum 2-inch concrete fill tops the metal deck at the finished floor or roof level.
1/4 3/16 1/4 2-3/4" DIA. x3 1/2" NELSON STUDS CENTERED ON BRACE PL 1/4" W-BM BEYOND L6x6x1/2 SPANNING BTWN. ADJ. BEAMS CONNECT TO ADJ. BEAMS PER STIFF. PL 1/4" EA. SIDE BRACE L3x3x1/4 W-BM. SEE PLAN 2 1 TYP. TYP. 2" MIN. CONC. FILL OVER METAL DECK FIN. FLOOR OR ROOF. CONC. FILL OVER METAL DECK 14 - 12 S5.51 NOTE: FOR INFO. NOT SHOWN, REFER TO DETAIL
