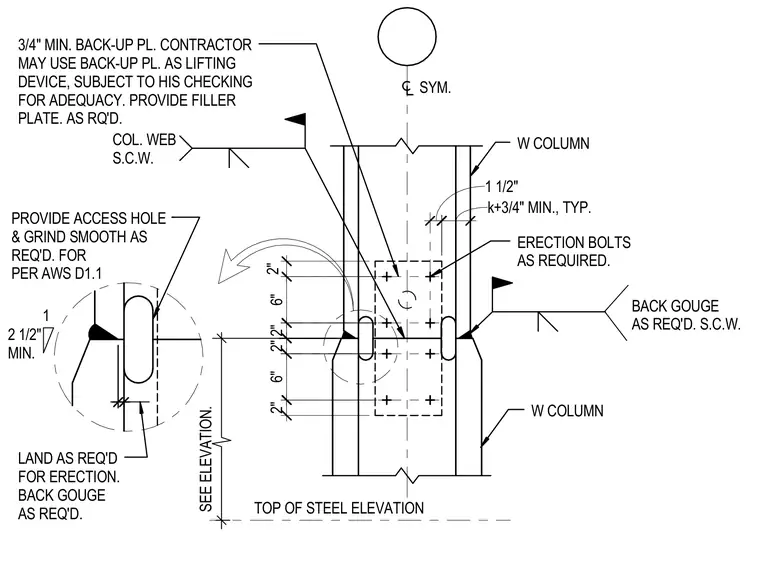

A welded and bolted splice connection joins two wide-flange steel columns. The assembly utilizes a three-quarter-inch minimum back-up plate, which the contractor may also use as a lifting device subject to verification of adequacy. Complete joint penetration welds join the members, supported by erection bolts as required, filler plates as needed, and back-gouging per AWS D1.1 specifications. A magnified inset detail specifies an access hole ground smooth with a two-and-a-half-inch minimum land as required for erection.
W COLUMN COL. WEB ERECTION BOLTS AS REQUIRED. SYM. S.C.W. SEE ELEVATION. TOP OF STEEL ELEVATION 3/4" MIN. BACK-UP PL. CONTRACTOR MAY USE BACK-UP PL. AS LIFTING DEVICE, SUBJECT TO HIS CHECKING FOR ADEQUACY. PROVIDE FILLER PLATE. AS RQ'D. 1 2 1/2" MIN. LAND AS REQ'D FOR ERECTION. BACK GOUGE AS REQ'D. W COLUMN PROVIDE ACCESS HOLE & GRIND SMOOTH AS REQ'D. FOR PER AWS D1.1 BACK GOUGE AS REQ'D. S.C.W. 3/4" 2" 6" 2" 2" 6" 2" 1 1/2" k+3/4" MIN., TYP.
