Structural · S-KZYZ7

Concrete Beam-Column Joint Reinforcement with Conduits

Materials

Elements

About this detail

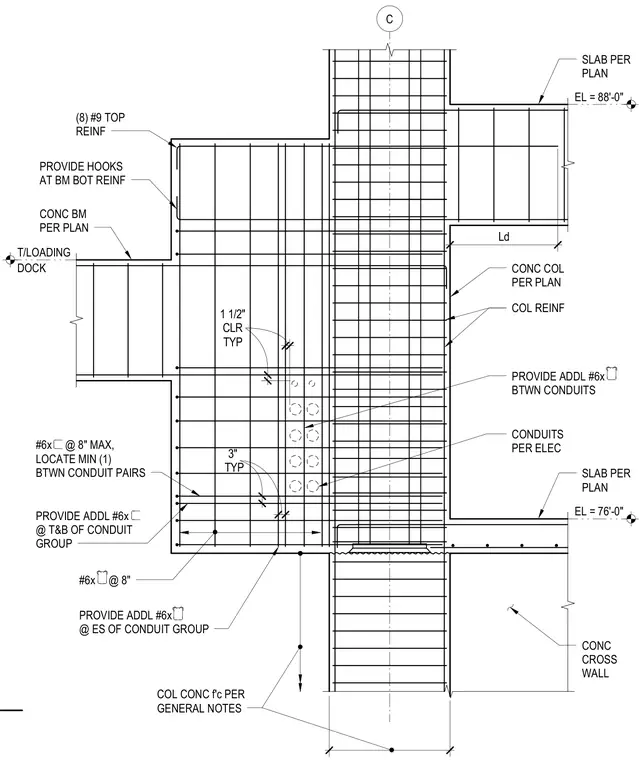

A reinforced concrete column connects with framing concrete beams and slabs at varying elevations, incorporating embedded electrical conduits passing through the structural zone. The column contains vertical reinforcing bars enclosed by ties, with concrete compressive strength defined per general notes. Framing concrete beams feature top reinforcement consisting of eight number nine bars, with hooks provided at the bottom beam reinforcement. Additional number six reinforcing bars are placed at a maximum spacing of eight inches, with at least one bar located between conduit pairs. Supplementary number six bars are also positioned at the top and bottom, as well as the exterior sides of the conduit group, maintaining typical clearances of one and a half inches and three inches.
