An elevator door sill support angle or bent plate with a thickness of three-eighths of an inch spans the full width of the elevator shaft and is secured to the concrete slab edge. A bent plate with a thickness of five-sixteenths of an inch runs along the slab edge and is anchored with one-half-inch diameter by one-foot six-inch welded deformed bar anchors spaced at fifteen inches on center. The assembly bears on a structural steel beam with reinforcement placed per plan and fillet welds sized per plan.

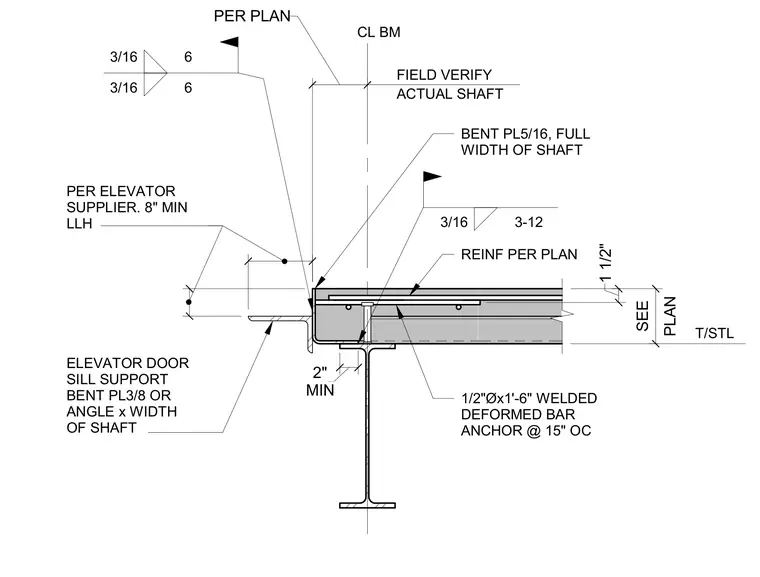

T/STL FIELD VERIFY ACTUAL SHAFT ELEVATOR DOOR SILL SUPPORT BENT PL3/8 OR ANGLE x WIDTH OF SHAFT 1/2"Øx1'-6" WELDED DEFORMED BAR ANCHOR @ 15" OC BENT PL5/16, FULL WIDTH OF SHAFT REINF PER PLAN 3/16 3-12 CL BM PLAN SEE 1 1/2" PER PLAN MIN 2" 3/16 6 3/16 6 PER ELEVATOR SUPPLIER. 8" MIN LLH
