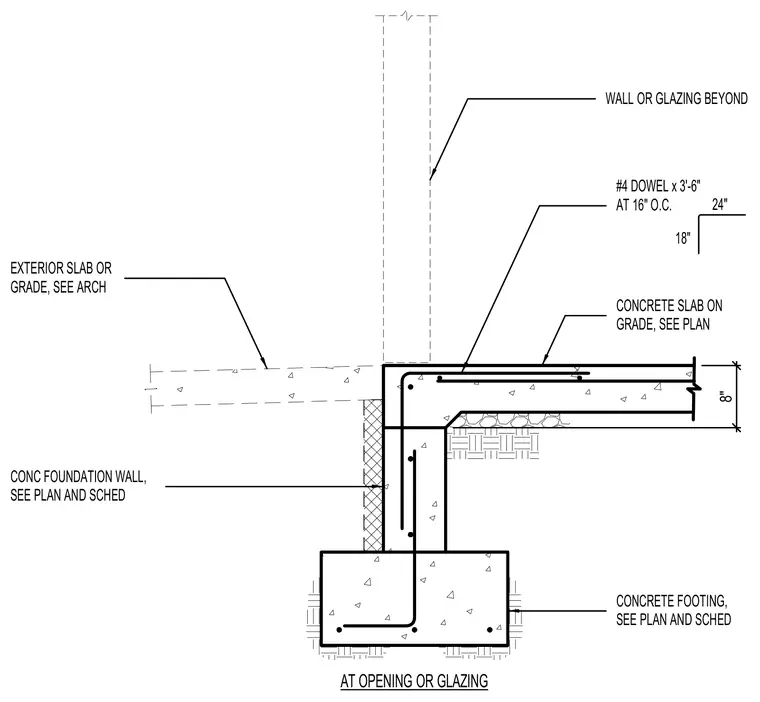

A concrete foundation wall sits atop a concrete footing, supporting a concrete slab on grade above. Number four dowels measuring three feet six inches long are placed at sixteen inches on center. An exterior slab on grade is positioned adjacent to the foundation wall per architectural drawings. Wall or glazing conditions extend above the slab edge.
CONCRETE SLAB ON GRADE, SEE PLAN CONCRETE FOOTING, SEE PLAN AND SCHED AT OPENING OR GLAZING #4 DOWEL x 3'-6" AT 16" O.C. 24" 18" WALL OR GLAZING BEYOND CONC FOUNDATION WALL, SEE PLAN AND SCHED EXTERIOR SLAB OR GRADE, SEE ARCH 8"
