Reinforcing bars feature specified clear cover based on the least of dimension "a" and dimension "b" to the face of the concrete. Offset bends are applied where required with a six-to-one minimum slope. Lap splices are detailed as contact or non-contact configurations with lap splice lengths determined per schedule. Transverse spacing for non-contact splices follows specified minimum and maximum limits.

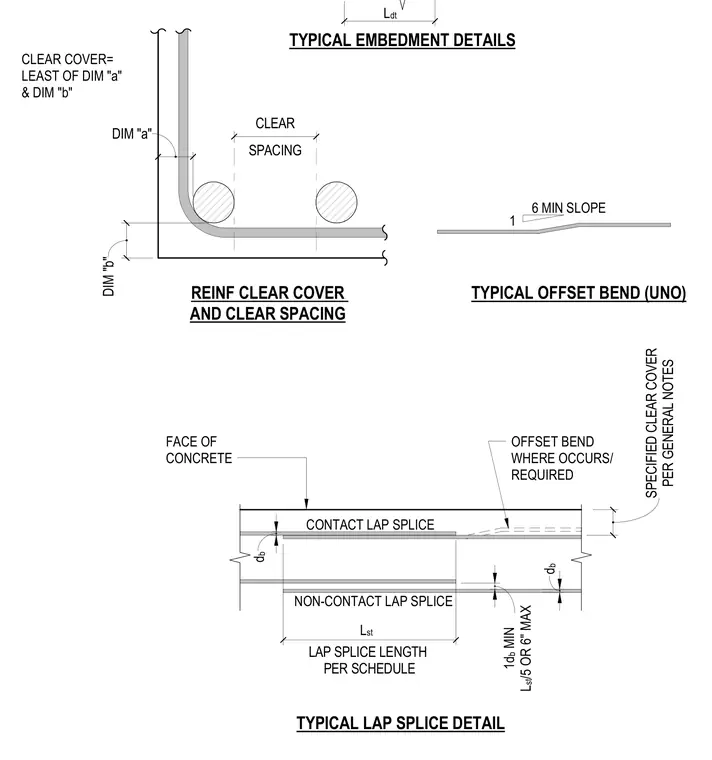

TYPICAL EMBEDMENT DETAILS 1 6 MIN SLOPE TYPICAL OFFSET BEND (UNO) LAP SPLICE LENGTH PER SCHEDULE TYPICAL LAP SPLICE DETAIL FACE OF CONCRETE OFFSET BEND WHERE OCCURS/ REQUIRED CONTACT LAP SPLICE NON-CONTACT LAP SPLICE d b d b L st 1d b MIN L st /5 OR 6" MAX REINF CLEAR COVER AND CLEAR SPACING SPACING CLEAR DIM "a" DIM "b" CLEAR COVER= LEAST OF DIM "a" & DIM "b" PER GENERAL NOTES SPECIFIED CLEAR COVER L dt
