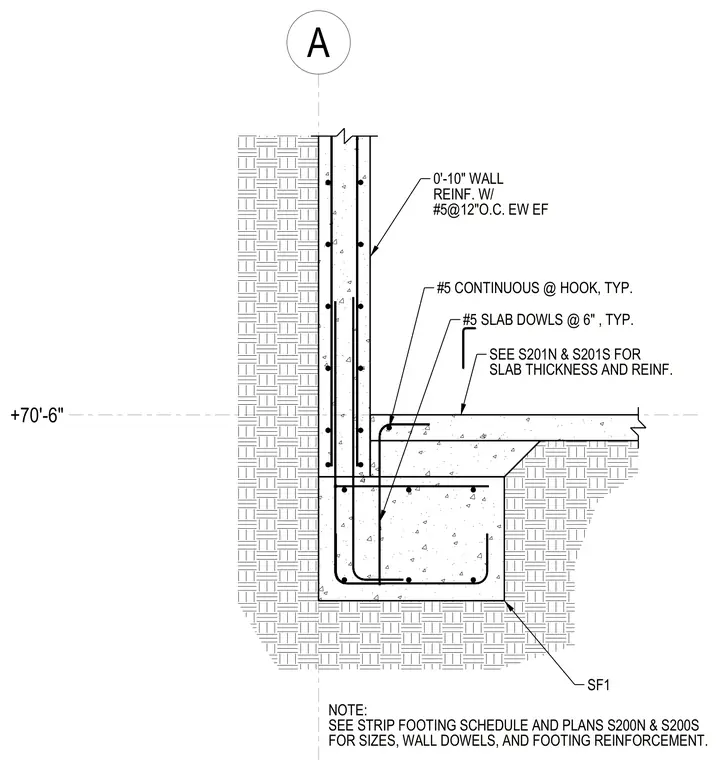

This structural detail shows an exterior wall strip footing supporting a ten-inch-thick concrete foundation wall with number five reinforcing bars placed at twelve inches on center each way and each face. Number five continuous rebar with hooks is detailed at the footing connection, along with number five slab dowels spaced at six inches typical. The concrete slab transitions to the foundation wall with thickness and reinforcing sized per plans S201N and S201S. Footing sizes, wall dowels, and additional footing reinforcement are coordinated with the strip footing schedule and plans S200N and S200S.
A +70'-6" SEE S201N & S201S FOR SLAB THICKNESS AND REINF. SF1 0'-10" WALL REINF. W/ #5@12"O.C. EW EF #5 SLAB DOWLS @ 6" , TYP. #5 CONTINUOUS @ HOOK, TYP. FOR SIZES, WALL DOWELS, AND FOOTING REINFORCEMENT. SEE STRIP FOOTING SCHEDULE AND PLANS S200N & S200S NOTE:
