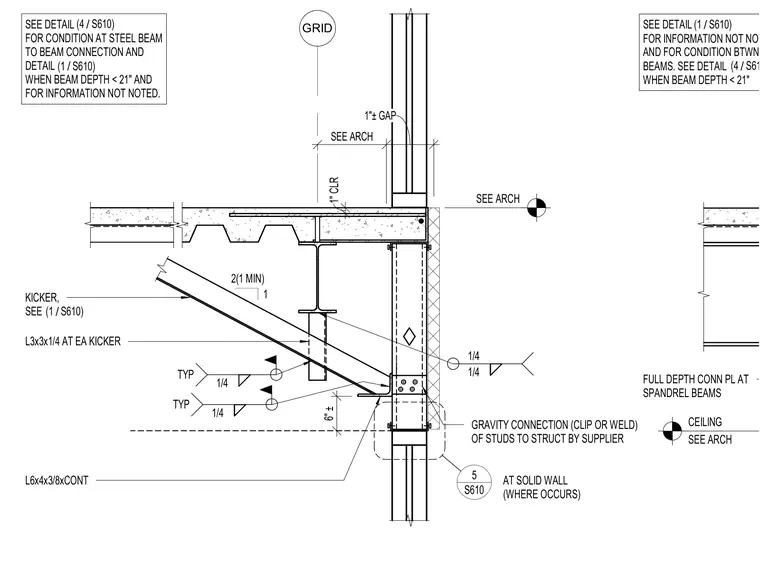

A kicker angle is welded to a steel spandrel beam assembly with a continuous angle and fillet welds. A structural angle L6x4x3/8 connects the kicker, while L3x3x1/4 angles are specified at each kicker location. A gravity connection using clips or welds fastens studs to the structure by the supplier. A one-inch clearance is maintained at the structural slab edge alongside a vertical gap condition shown relative to architectural grid lines.
SEE DETAIL FOR CONDITION AT STEEL BEAM TO BEAM CONNECTION AND DETAIL WHEN BEAM DEPTH < 21" AND FOR INFORMATION NOT NOTED. GRID SEE ARCH 1"± GAP 2(1 MIN) 1 SEE ARCH GRAVITY CONNECTION (CLIP OR WELD) OF STUDS TO STRUCT BY SUPPLIER L6x4x3/8xCONT L3x3x1/4 AT EA KICKER KICKER, SEE 1/4 TYP 1/4 1/4 / (4 S610) / (1 S610) 1" CLR 6" ± 1/4 TYP / (1 S610) S610 5 AT SOLID WALL (WHERE OCCURS) SEE DETAIL FOR INFORMATION NOT NOTED AND FOR CONDITION BTWN BEAMS. SEE DETAIL WHEN BEAM DEPTH < 21" CEILING SEE ARCH FULL DEPTH CONN PL AT SPANDREL BEAMS / (1 S610) / (4 S610)
