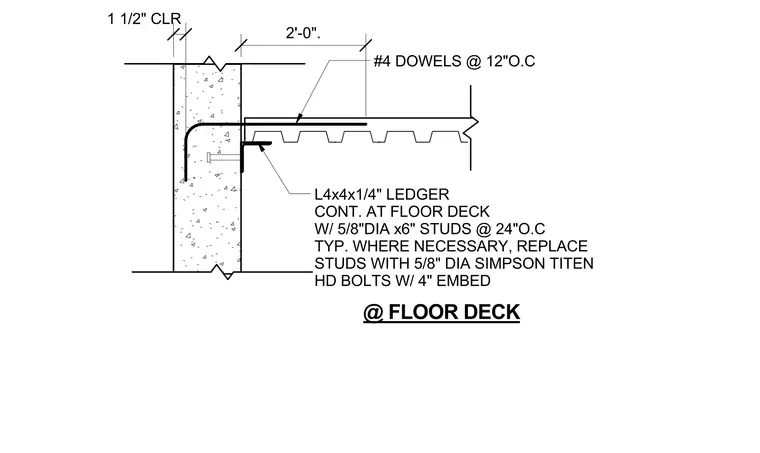

A continuous L4x4x1/4-inch steel angle ledger supports the floor deck against the concrete wall, anchored with five-eighths-inch diameter by six-inch studs at twenty-four inches on center typically. Where necessary, the studs are replaced with five-eighths-inch diameter Simpson Titen HD bolts featuring a four-inch embedment. Number four dowels spaced at twelve inches on center tie the floor deck into the concrete wall with one and one-half inches of clearance.
L4x4x1/4" LEDGER CONT. AT FLOOR DECK W/ 5/8"DIA x6" STUDS @ 24"O.C TYP. WHERE NECESSARY, REPLACE STUDS WITH 5/8" DIA SIMPSON TITEN HD BOLTS W/ 4" EMBED @ FLOOR DECK 1 1/2" CLR 2'-0". #4 DOWELS @ 12"O.C
