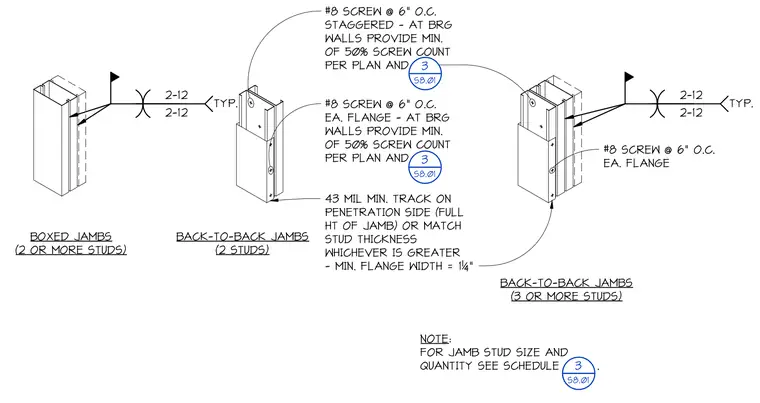

Cold-formed steel jamb configurations feature boxed jambs with two or more studs and back-to-back jamb configurations utilizing two or three studs. Number 8 screws are fastened at six inches on center staggered or on each flange depending on the assembly type, with bearing walls requiring a minimum of fifty percent of the screw count specified per plan. A forty-three mil minimum track is installed on the penetration side for the full height of the jamb or matched to the stud thickness, whichever is greater, requiring a minimum one and one-quarter inch flange width. Jamb stud size and quantity are determined per the structural schedule.
2-12 2-12 #8 SCREW @ 6" O.C. STAGGERED - AT BRG WALLS PROVIDE MIN. OF 50% SCREW COUNT PER PLAN AND #8 SCREW @ 6" O.C. EA. FLANGE - AT BRG WALLS PROVIDE MIN. OF 50% SCREW COUNT PER PLAN AND BOXED JAMBS (2 OR MORE STUDS) BACK-TO-BACK JAMBS (2 STUDS) 43 MIL MIN. TRACK ON PENETRATION SIDE (FULL HT OF JAMB) OR MATCH STUD THICKNESS WHICHEVER IS GREATER - MIN. FLANGE WIDTH = 1¼" 2-12 2-12 #8 SCREW @ 6" O.C. EA. FLANGE BACK-TO-BACK JAMBS (3 OR MORE STUDS) TYP. TYP. NOTE: FOR JAMB STUD SIZE AND QUANTITY SEE SCHEDULE . 3 S8.01 3 S8.01 3 S8.01
