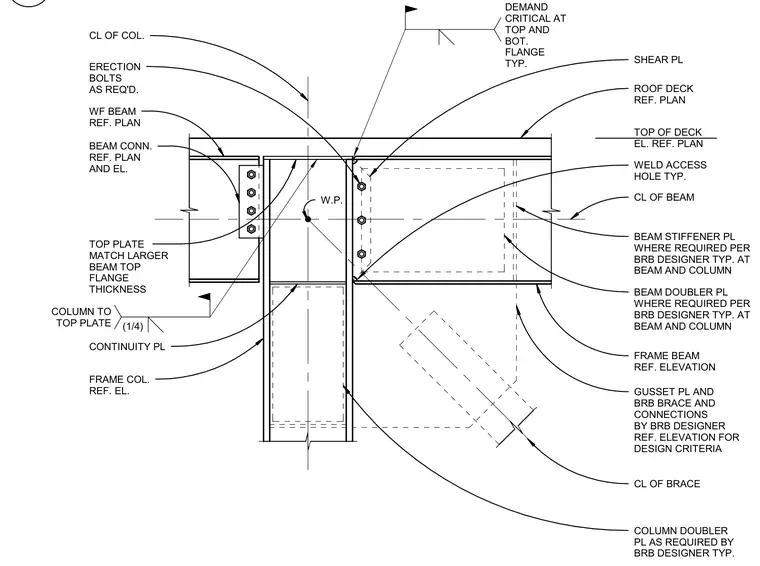

This structural steel connection features a wide-flange frame beam intersecting a frame column with a gusset plate and buckling-restrained brace designed by the specialty engineer. A top plate matches the larger beam top flange thickness and connects to the column with a quarter-inch fillet weld. Demand-critical complete joint penetration welds occur at the top and bottom flanges typically. Continuity plates, beam stiffener plates, and column doubler plates are provided as required by the designer. Erection bolts are installed as required at the beam shear plate connection, which includes standard weld access holes.
WF BEAM REF. PLAN GUSSET PL AND BRB BRACE AND CONNECTIONS BY BRB DESIGNER REF. ELEVATION FOR DESIGN CRITERIA FRAME BEAM REF. ELEVATION CL OF BEAM ROOF DECK REF. PLAN ERECTION BOLTS AS REQ'D. SHEAR PL CL OF COL. FRAME COL. REF. EL. CONTINUITY PL BEAM CONN. REF. PLAN AND EL. W.P. WELD ACCESS HOLE TYP. CL OF BRACE BEAM DOUBLER PL WHERE REQUIRED PER BRB DESIGNER TYP. AT BEAM AND COLUMN BEAM STIFFENER PL WHERE REQUIRED PER BRB DESIGNER TYP. AT BEAM AND COLUMN C.J.P. DEMAND CRITICAL AT TOP AND BOT. FLANGE TYP. TOP PLATE MATCH LARGER BEAM TOP FLANGE THICKNESS COLUMN DOUBLER PL AS REQUIRED BY BRB DESIGNER TYP. COLUMN TO TOP PLATE (1/4) TOP OF DECK EL. REF. PLAN
