Column Pedestal Anchor Rod and Reinforcing Plan

Materials

Steel Metal (misc.)

Elements

Columns Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Bolted Connection

About this detail

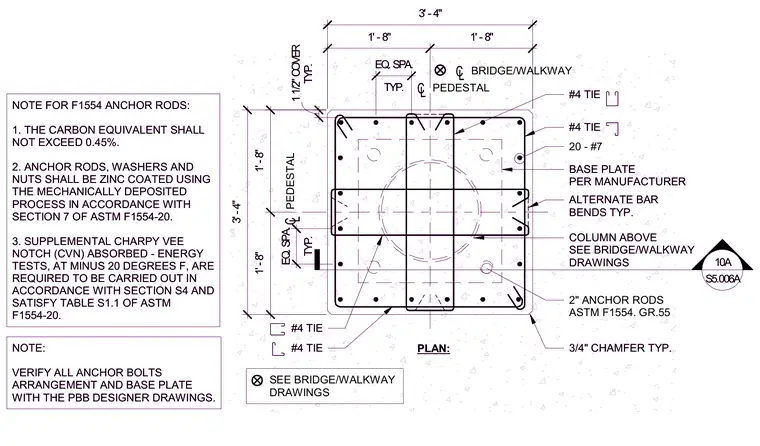

A concrete pedestal measuring three feet four inches square is reinforced with twenty number seven vertical bars and number four ties with alternate bar bends. Twenty two-inch diameter ASTM F1554 Grade 55 anchor rods are arranged to match the column base plate provided by the manufacturer for the bridge or walkway column above. The pedestal features a typical three-quarter-inch chamfer and one-and-one-half-inch concrete cover. Material notes specify a maximum carbon equivalent of 0.45 percent, mechanically deposited zinc coating for the anchor rods, nuts, and washers in accordance with ASTM F1554 Section 7, and supplemental Charpy V-notch absorbed energy tests at minus 20 degrees Fahrenheit. All anchor bolt arrangements and base plates must be verified against the designer drawings.
