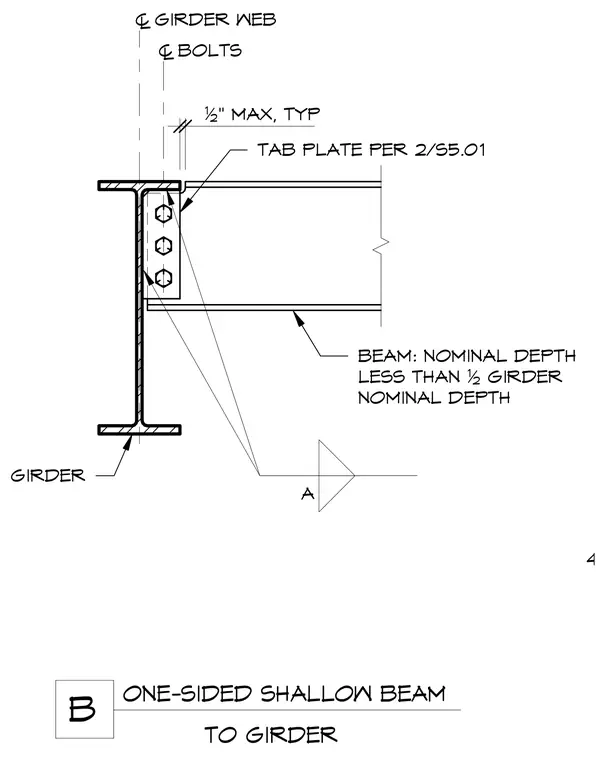

A shallow steel beam with a nominal depth less than half the girder nominal depth connects to a supporting steel girder web. A vertical tab plate welded to the girder web connects to the beam web using three bolts. A maximum clearance of one-half inch is maintained between the beam end and the girder web. The connection is detailed with a half-inch maximum typical setback.
ONE-SIDED SHALLOW BEAM TO GIRDER GIRDER BEAM: NOMINAL DEPTH LESS THAN ½ GIRDER NOMINAL DEPTH ½" MAX, TYP ® BOLTS ® GIRDER WEB TAB PLATE PER 2/S5.01 A 4½" MAX. TYP. U.O.N. B
