Structural · S-KYEH5

Column to Beam Connection Details

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Base Plate / Anchorage Bracing Connection Rebar Splice / Development

About this detail

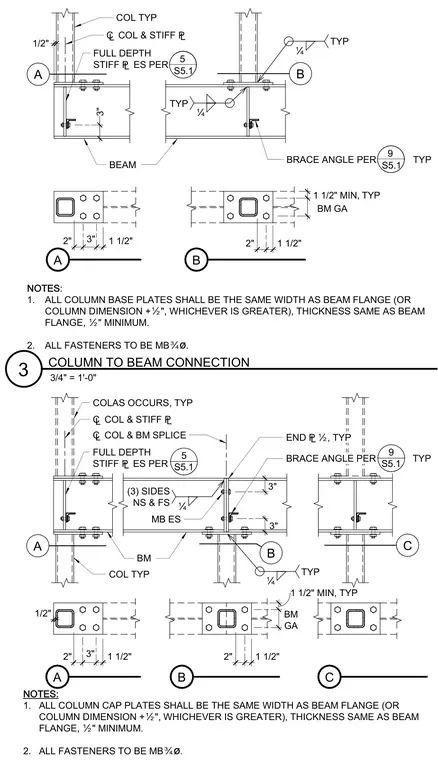

Steel column-to-beam connections include column splices, base plates, and cap plates. The assembly incorporates full-depth stiffener plates aligned with the column centerline, end plates welded with quarter-inch fillet welds on three sides both near side and far side, and typical brace angles. Fasteners consist of three-quarter-inch diameter bolts. General notes specify that column base and cap plates must match the beam flange width or the column dimension plus one-half inch, maintaining a thickness equal to the beam flange with a one-half-inch minimum.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
