Concrete Footing Penetration for Perpendicular Pipe

Materials

Elements

About this detail

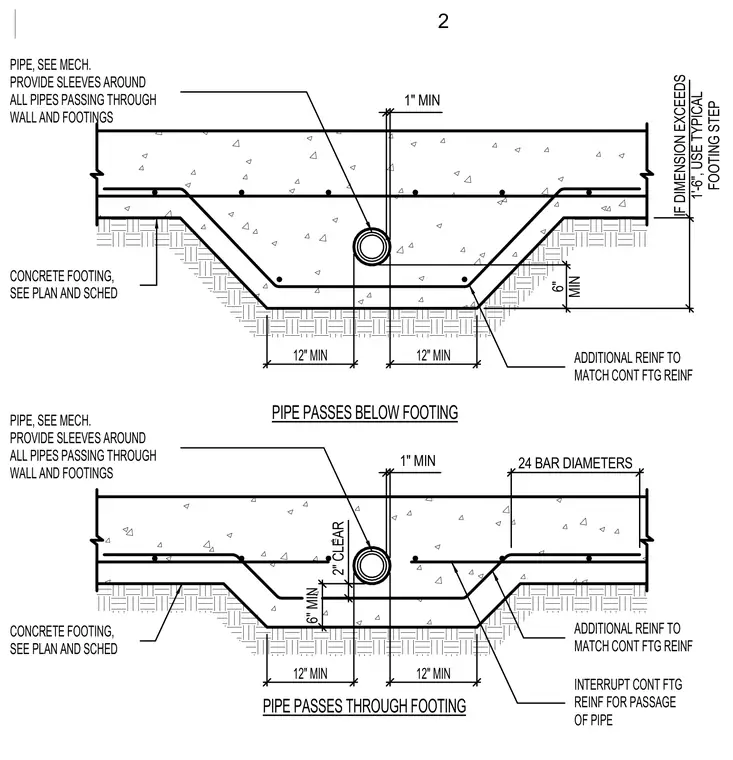

Conditions for pipes passing perpendicular to concrete foundations and walls. Pipes must be provided with sleeves where passing through walls and footings. When a pipe passes through the footing, continuous footing reinforcement is interrupted, and additional reinforcement matching the continuous footing reinforcement is required. When a pipe passes below the footing, a minimum clearance is maintained with specific depth and step requirements.
