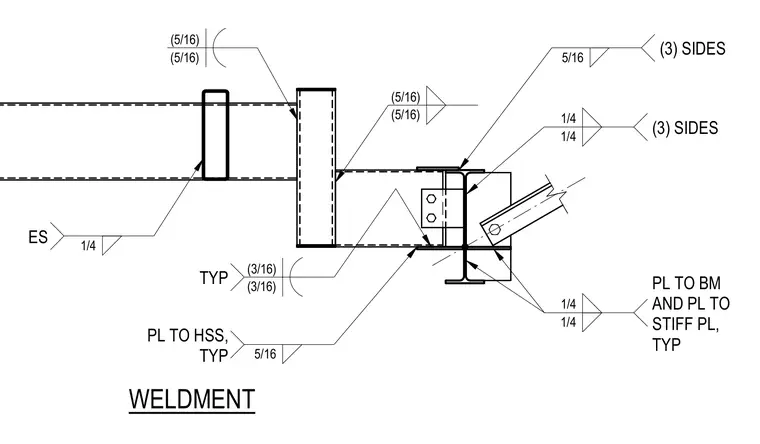

A fabricated steel weldment connects a steel beam and hollow structural sections using welded plates and stiffeners. The connection incorporates a five-sixteenth-inch fillet weld typical on three sides for the plate-to-hollow structural section joints. Additional quarter-inch fillet welds secure the plate to the beam and stiffener plates typical. A quarter-inch weld with an each side designation is applied as noted. Standard structural steel connection practices govern the fit-up and weld sizes for the assembly.
(5/16) (5/16) (5/16) (5/16) (3) SIDES 1/4 1/4 PL TO HSS, TYP 5/16 (3) SIDES 5/16 PL TO BM AND PL TO STIFF PL, TYP 1/4 1/4 TYP (3/16) (3/16) WELDMENT ES 1/4
