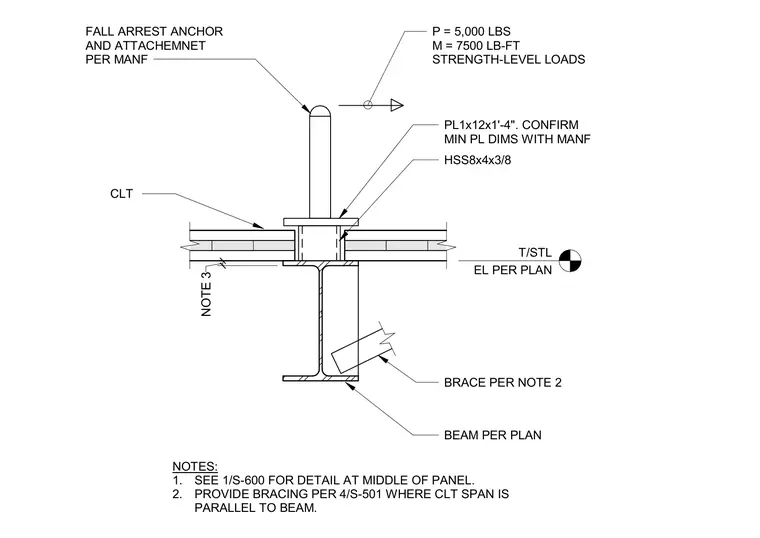

A fall arrest anchor and attachment are installed per manufacturer specifications on a 1-inch by 12-inch by 1-foot 4-inch plate resting on an HSS8x4x3/8 hollow structural section. The steel support assembly fastens through cross-laminated timber panels to a structural steel beam sized per plan, with top-of-steel elevation located per plan. Strength-level loads of P equals 5,000 pounds and M equals 7,500 pound-feet apply to the anchor. Diagonal bracing is provided per plan notes where the cross-laminated timber span runs parallel to the supporting beam.
T/STL EL PER PLAN BEAM PER PLAN FALL ARREST ANCHOR AND ATTACHEMNET PER MANF CLT NOTES: 1. SEE 1/S-600 FOR DETAIL AT MIDDLE OF PANEL. 2. PROVIDE BRACING PER 4/S-501 WHERE CLT SPAN IS PARALLEL TO BEAM. BRACE PER NOTE 2 P = 5,000 LBS M = 7500 LB-FT STRENGTH-LEVEL LOADS NOTE 3 HSS8x4x3/8 PL1x12x1'-4". CONFIRM MIN PL DIMS WITH MANF
