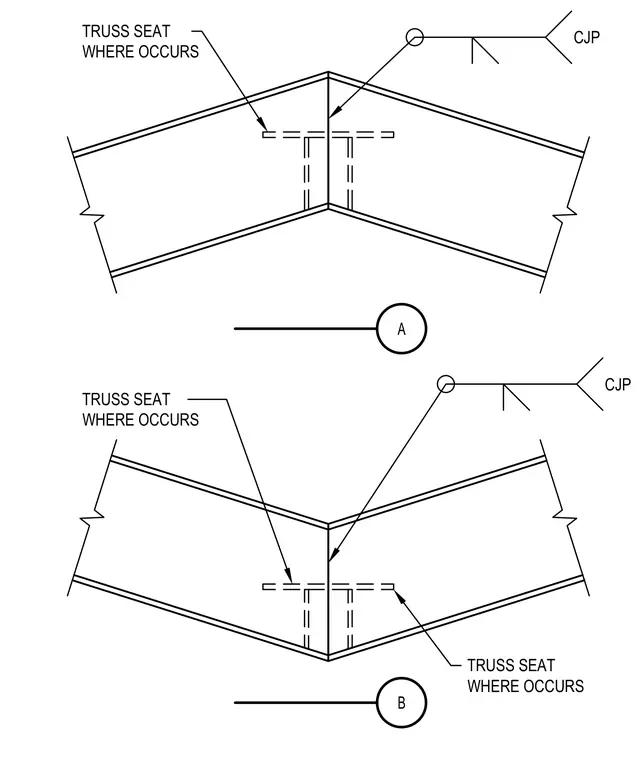

The steel trusses are joined at the peak with a truss seat connection where indicated on the drawings. The structural members are connected using complete joint penetration (CJP) welds at the ridge.
A B TRUSS SEAT WHERE OCCURS TRUSS SEAT WHERE OCCURS CJP CJP TRUSS SEAT WHERE OCCURS
