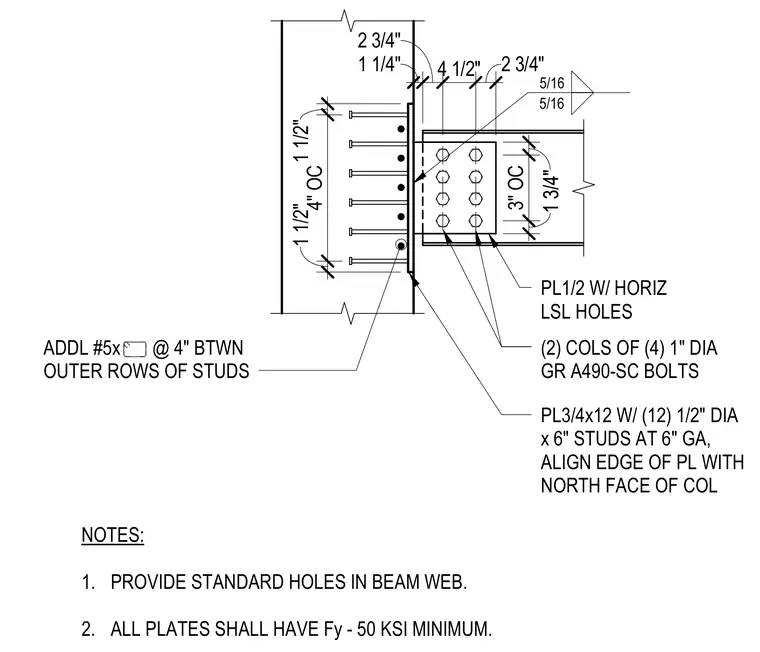

A structural steel beam connects to a vertical member using a half-inch thick plate with horizontal slotted holes welded with five-sixteenths fillet welds to the beam web. Two columns of four one-inch diameter Group A490 slip-critical bolts fasten the beam web to the connecting plate. The plate transfers load into a three-quarter by twelve-inch embedded plate secured by twelve half-inch diameter by six-inch long studs spaced at six inches on center. Additional reinforcing bars are placed at four inches on center between the outer rows of studs. All structural plates have a minimum yield strength of 50 KSI, and standard holes are provided in the beam web.
1 1/4" 2 3/4" 4 1/2" 2 3/4" 1 3/4" 3" OC 1 3/4" 1 1/2" 4" OC 1 1/2" NOTES: 1. PROVIDE STANDARD HOLES IN BEAM WEB. 2. ALL PLATES SHALL HAVE Fy - 50 KSI MINIMUM. 5/16 5/16 PL1/2 W/ HORIZ LSL HOLES (2) COLS OF (4) 1" DIA GR A490-SC BOLTS PL3/4x12 W/ (12) 1/2" DIA x 6" STUDS AT 6" GA, ALIGN EDGE OF PL WITH NORTH FACE OF COL ADDL #5x @ 4" BTWN OUTER ROWS OF STUDS
