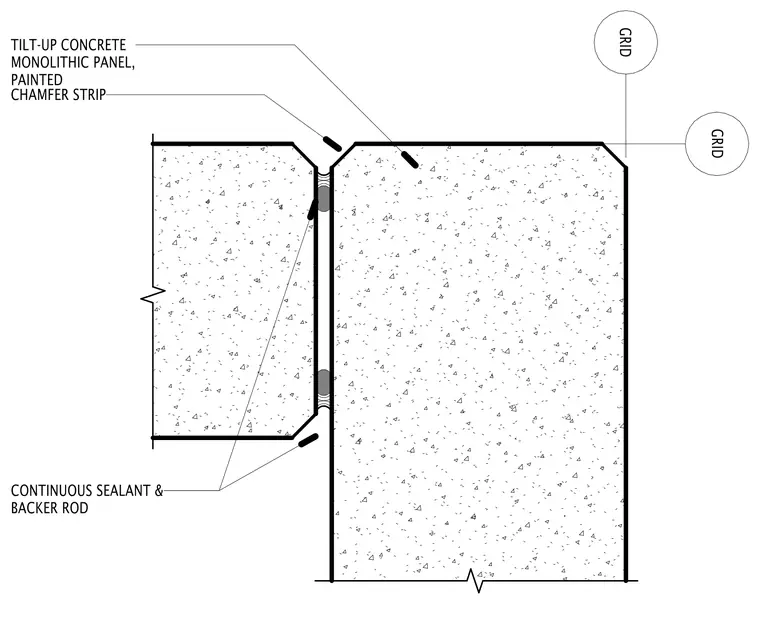

A corner junction between tilt-up concrete monolithic panels aligns with structural grid lines. The joint incorporates continuous sealant and backer rod within the vertical reveal between the adjacent concrete panels. Each exterior corner features a painted chamfer strip to prevent spalling and provide a clean architectural edge.
CONTINUOUS SEALANT & BACKER ROD CONTINUOUS SEALANT & BACKER ROD TILT-UP CONCRETE MONOLITHIC PANEL, PAINTED CHAMFER STRIP GRID GRID
