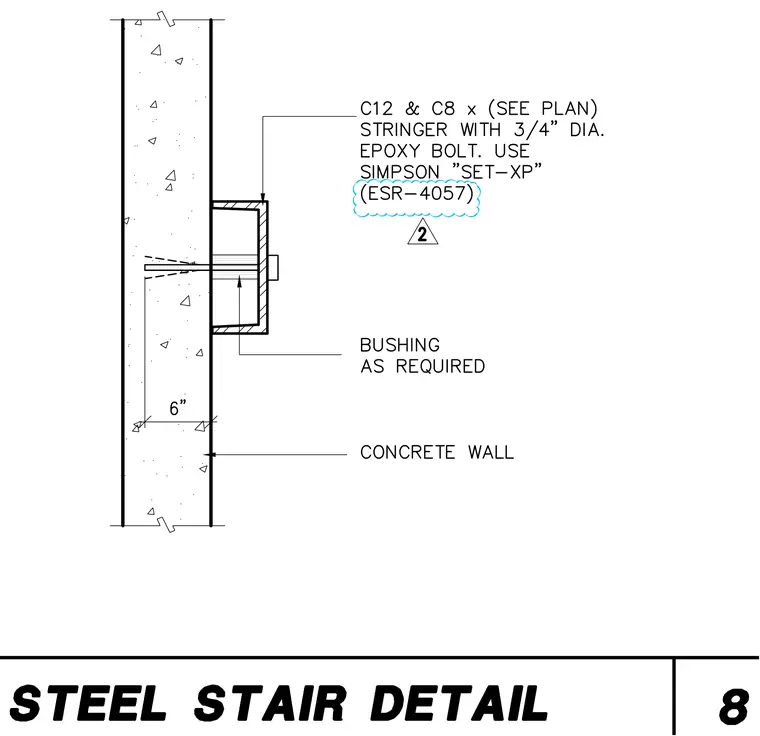

A C12 and C8 channel stringer is anchored to a 6-inch concrete wall with three-quarter-inch diameter epoxy bolts utilizing Simpson SET-XP adhesive per ESR-4057. A bushing is installed as required between the connection components. The assembly secures the stair framing directly to the vertical concrete substrate.
