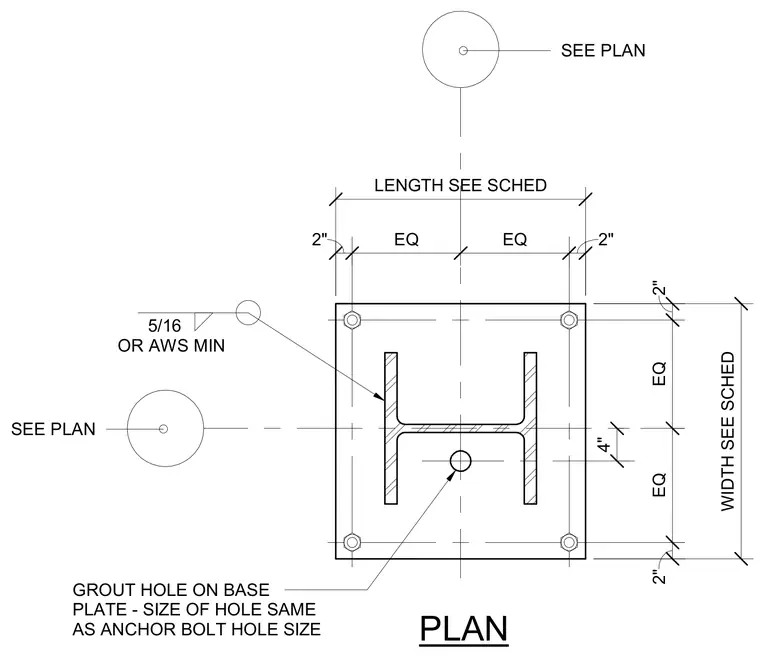

A structural steel column base plate is detailed in plan view with symmetrical anchor bolt locations positioned relative to the centerlines. The plate dimensions for length and width are determined per the structural schedule, with edge distances maintained at two inches alongside equal spacing. A four-inch grout hole is centered on the base plate, matching the anchor bolt hole diameter. The column section is welded to the base plate using a five-sixteenth-inch fillet weld or per American Welding Society minimum standards.
SEE PLAN SEE PLAN PLAN OR AWS MIN 5/16 2" EQ EQ 2" WIDTH SEE SCHED 2" EQ EQ 2" LENGTH SEE SCHED 4" GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE
