Structural · S-KXC8Q

Steel Column Base Plate Detail at Concrete Foundation

Materials

Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Bolted Connection

About this detail

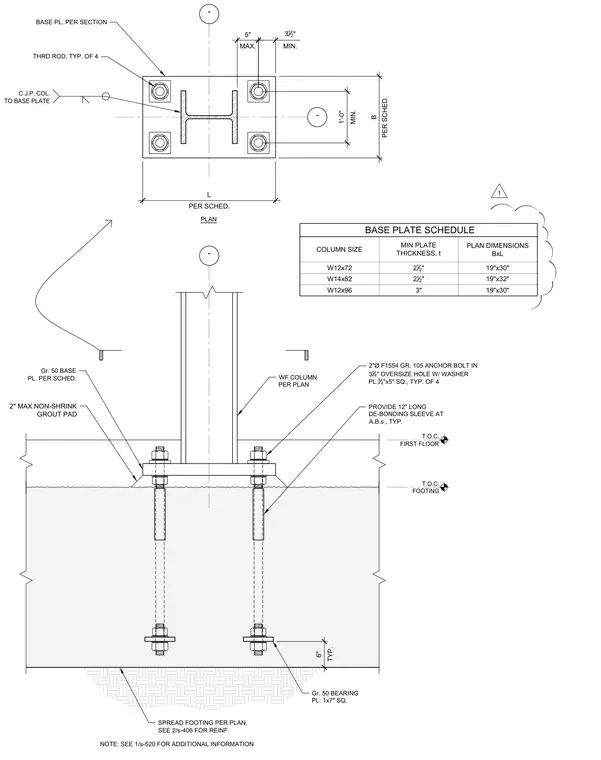

A wide-flange steel column connects to a concrete spread footing via a Grade 50 steel base plate, detailed with a complete-joint-penetration weld from the column to the base plate. Four 2-inch diameter ASTM F1554 Grade 105 threaded anchor rods are set within 3-3/4-inch oversized holes featuring 3/4-inch by 5-inch square washer plates, with a 12-inch long debonding sleeve provided at each anchor bolt. The base plate bears on a 2-inch maximum non-shrink grout pad over the concrete footing, which includes a Grade 50 bearing plate measuring 1-inch by 7-inch square embedded near the bottom. A base plate schedule is provided on the drawing specifying minimum plate thicknesses and plan dimensions for W12x72, W14x82, and W12x96 column sizes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
