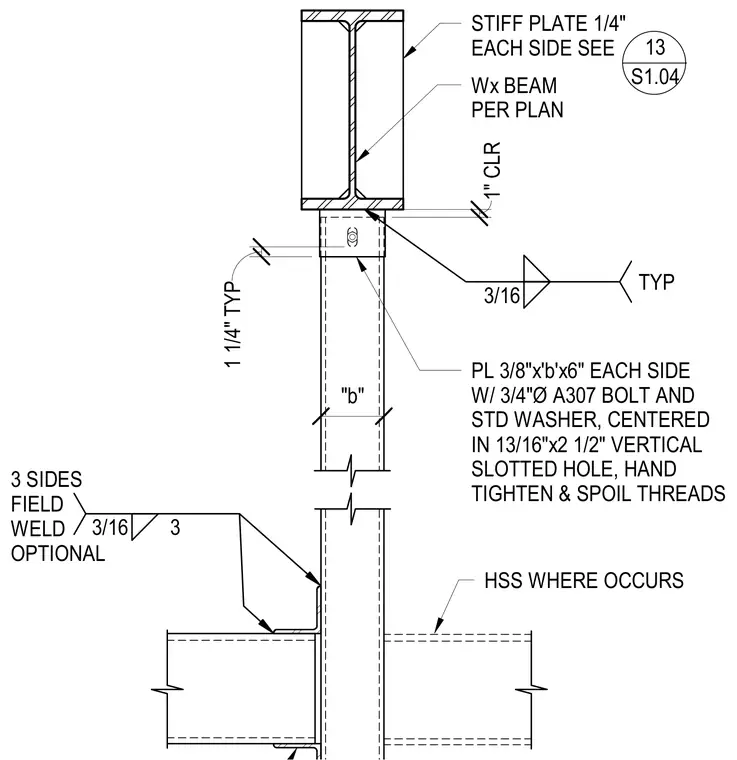

A wide-flange beam sits above a hollow structural section column with a one-inch vertical clearance. Three-eighths-inch thick plates are welded to each side with a three-sixteenths-inch fillet weld typical. A three-quarter-inch diameter A307 bolt with a standard washer is centered in a thirteen-sixteenths-inch by two-and-one-half-inch vertical slotted hole, hand tightened and with spoiled threads to allow movement. One-quarter-inch stiffener plates are welded to each side of the beam web. An optional three-sixteenths-inch field weld is specified to be applied on three sides where the lower beam intersects.
HSS WHERE OCCURS Wx BEAM PER PLAN STIFF PLATE 1/4" EACH SIDE SEE 3 SIDES FIELD WELD OPTIONAL 3/16 TYP 3/16 3 1" CLR 1 1/4" TYP PL 3/8"x'b'x6" EACH SIDE W/ 3/4"Ø A307 BOLT AND STD WASHER, CENTERED IN 13/16"x2 1/2" VERTICAL SLOTTED HOLE, HAND TIGHTEN & SPOIL THREADS "b" 13 S1.04
