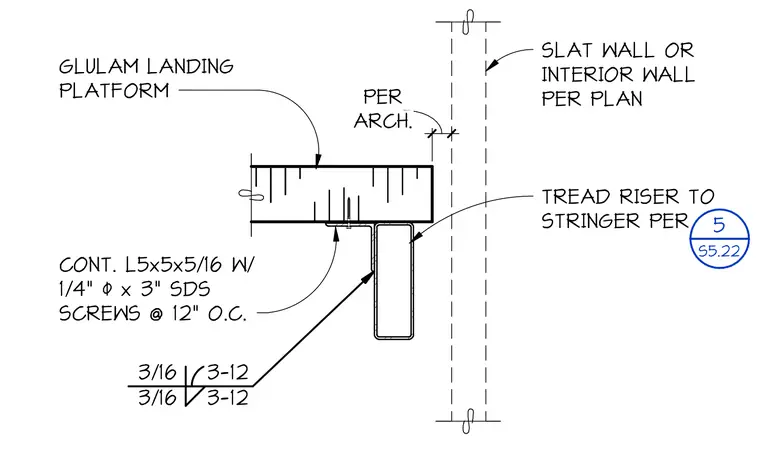

A continuous L5x5x5/16 angle supports the glulam landing platform, secured with quarter-inch diameter by three-inch self-drilling screws spaced at twelve inches on center. The structural support assembly ties into a vertical stringer member below with welded connections. A slat wall or interior wall is positioned adjacent per architectural plans.
ARCH. PER GLULAM LANDING PLATFORM SLAT WALL OR INTERIOR WALL PER PLAN TREAD RISER TO STRINGER PER 5 S5.22 CONT. L5x5x5/16 W/ 1/4" + x 3" SDS SCREWS @ 12" O.C. 3/16 3-12 3/16 3-12
