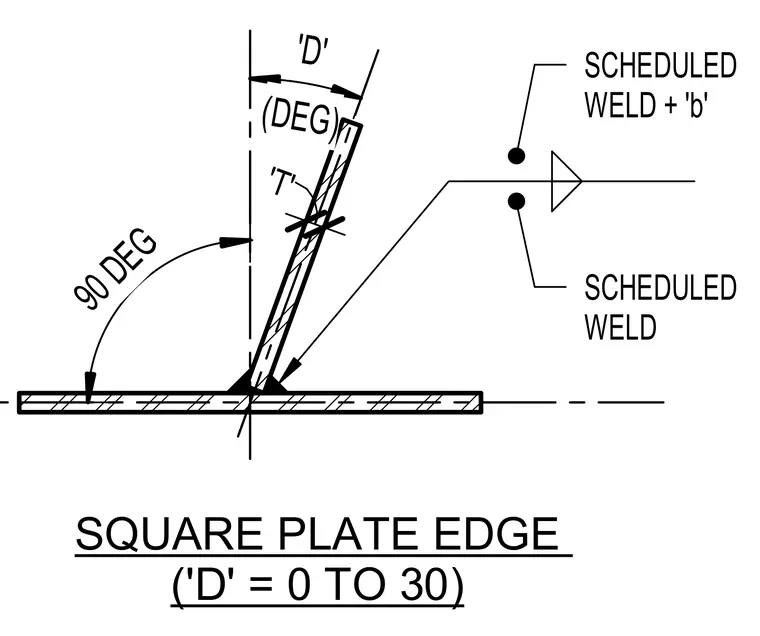

A square plate edge is detailed with a scheduled weld connection to a base member, accommodating an adjustable angle from zero to thirty degrees from the vertical axis. The assembly includes a scheduled weld combined with an additional weld parameter on one side and a base scheduled weld on the opposite side. The plate thickness is designated as T, and the base reference angle is set at ninety degrees.
(DEG) 'D' SQUARE PLATE EDGE ('D' = 0 TO 30) SCHEDULED WELD + 'b' SCHEDULED WELD 'T' 90 DEG
