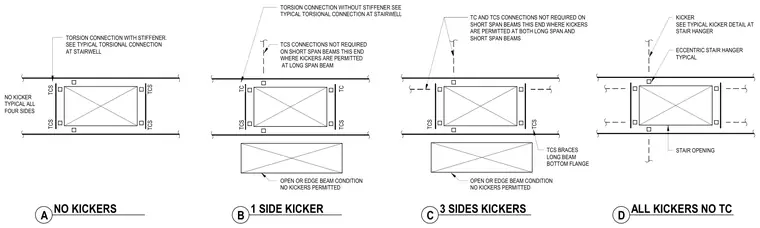

These structural framing diagrams illustrate four distinct torsional connection and kicker configurations for stairwell openings. The layouts show beam arrangements with varying applications of torsional connections with and without stiffeners, torsion connection strips, and kickers at long span and short span beams. Open and edge beam conditions restrict kickers where indicated, while specific locations omit torsion connections on short span beams. Eccentric stair hangers and typical kickers tie into the surrounding floor framing members.
TCS TC TCS STAIR OPENING ECCENTRIC STAIR HANGER TYPICAL KICKER SEE TYPICAL KICKER DETAIL AT STAIR HANGER NO KICKER TYPICAL ALL FOUR SIDES TCS TCS TCS TCS TCS TC TCS TCS BRACES LONG BEAM BOTTOM FLANGE TC AND TCS CONNECTIONS NOT REQUIRED ON SHORT SPAN BEAMS THIS END WHERE KICKERS ARE PERMITTED AT BOTH LONG SPAN AND SHORT SPAN BEAMS OPEN OR EDGE BEAM CONDITION NO KICKERS PERMITTED TORSION CONNECTION WITHOUT STIFFENER SEE TYPICAL TORSIONAL CONNECTION AT STAIRWELL TCS CONNECTIONS NOT REQUIRED ON SHORT SPAN BEAMS THIS END WHERE KICKERS ARE PERMITTED AT LONG SPAN BEAM TORSION CONNECTION WITH STIFFENER. SEE TYPICAL TORSIONAL CONNECTION AT STAIRWELL A NO KICKERS B 1 SIDE KICKER C 3 SIDES KICKERS D ALL KICKERS NO TC OPEN OR EDGE BEAM CONDITION NO KICKERS PERMITTED
