A wide-flange beam connects to a supporting wide-flange girder using connection plates sized per schedule with bolted web connections. Five-eighths-inch web plates attach to the opposite side of the connection plate. The stiffener plate is clipped to fit the girder k-distance, and welding is omitted in the designated zone. Three-quarter-inch and one-half-inch fillet welds secure the plates as specified.

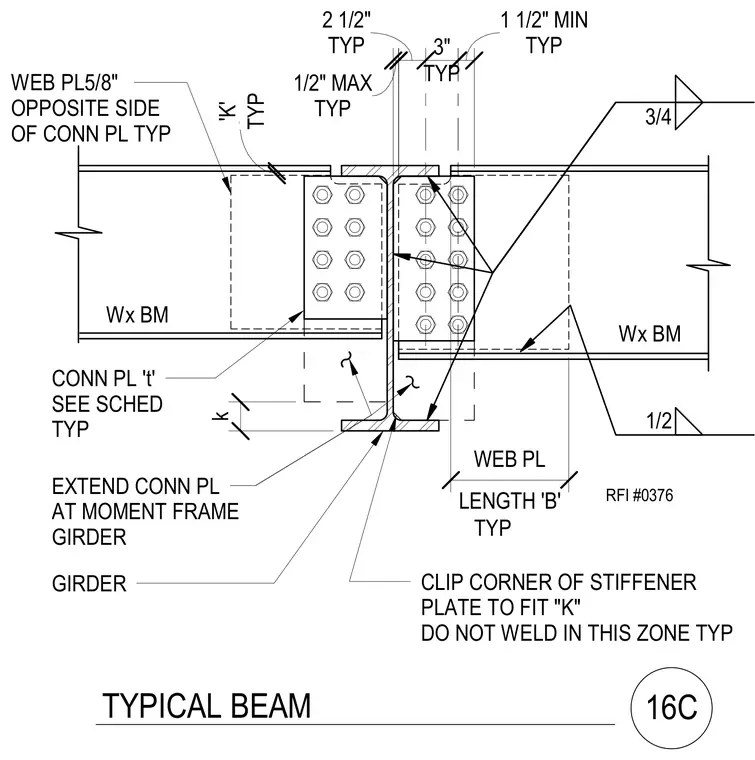

Wx BM GIRDER EXTEND CONN PL AT MOMENT FRAME GIRDER Wx BM CLIP CORNER OF STIFFENER PLATE TO FIT "K" DO NOT WELD IN THIS ZONE TYP CONN PL 't' SEE SCHED TYP 3/4 k TYP 2 1/2" TYP 3" TYP 1 1/2" MIN TYP 1/2" MAX 1/2 LENGTH 'B' WEB PL TYP WEB PL5/8" OPPOSITE SIDE OF CONN PL TYP TYP 'K' RFI #0376 TYPICAL BEAM 16C
