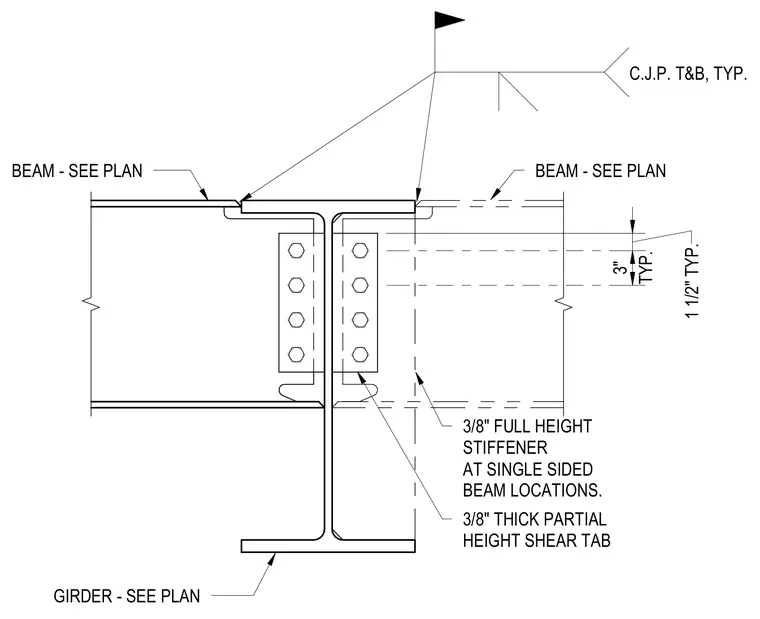

A structural beam frames into a supporting girder using a moment connection. The beam flanges connect to the girder with complete joint penetration welds at the top and bottom. A three-eighths-inch thick partial height shear tab bolts to the beam web using four-bolt vertical patterns on each side. A three-eighths-inch full height stiffener plate is provided at single-sided beam locations to reinforce the web of the supporting girder.
C.J.P. T&B, TYP. BEAM - SEE PLAN BEAM - SEE PLAN 3/8" THICK PARTIAL HEIGHT SHEAR TAB GIRDER - SEE PLAN TYP. 3" 1 1/2" TYP. 3/8" FULL HEIGHT STIFFENER AT SINGLE SIDED BEAM LOCATIONS.
