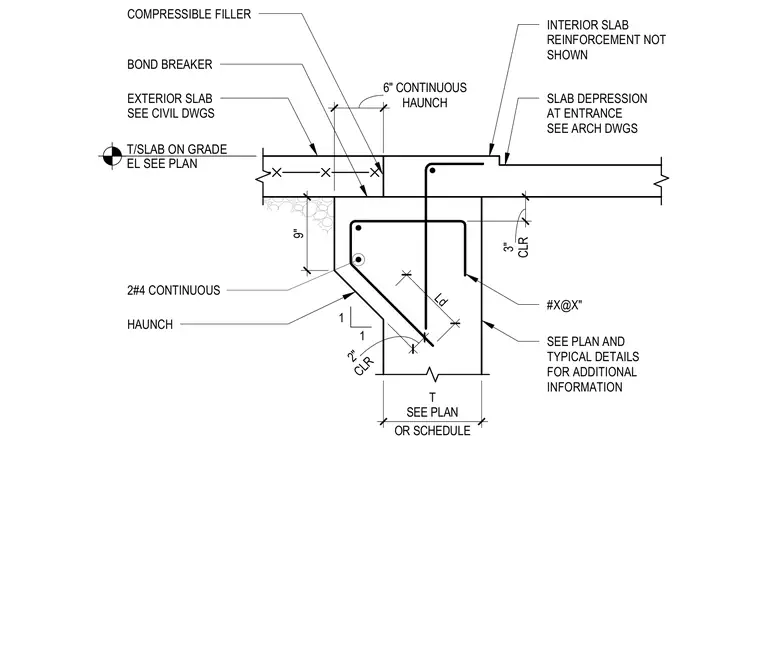

This structural detail shows a concrete slab-on-grade haunch at an entrance transition. The interior slab features a depression at the entrance with reinforcement extending into a six-inch continuous haunch. Compressible filler and a bond breaker separate the interior slab from the exterior slab. Reinforcing includes two continuous number four bars and development length detailing within the haunch.
T/SLAB ON GRADE EL SEE PLAN EXTERIOR SLAB SEE CIVIL DWGS SEE PLAN AND TYPICAL DETAILS FOR ADDITIONAL INFORMATION SLAB DEPRESSION AT ENTRANCE SEE ARCH DWGS HAUNCH INTERIOR SLAB REINFORCEMENT NOT SHOWN COMPRESSIBLE FILLER BOND BREAKER HAUNCH 6" CONTINUOUS 1 1 CLR 3" 9" CLR 2" Ld 2#4 CONTINUOUS #X@X" OR SCHEDULE T SEE PLAN
